Information

Routing a cable route. The product should be used only in corrosivity class C1.

Material

FD - hot-dip galvanized according to PN-EN 10244-2:2023-11

Available finishes:

L - painting in standard RAL colour

Additional information

– galvanised wire before the welding process (visible weld marks). The ends of the wires may be covered with a rusty patina, which is due to production technology.

– production triggered for larger orders

– all wires in mesh trays are chamfered which prevents damage to cables

Product versions

Add

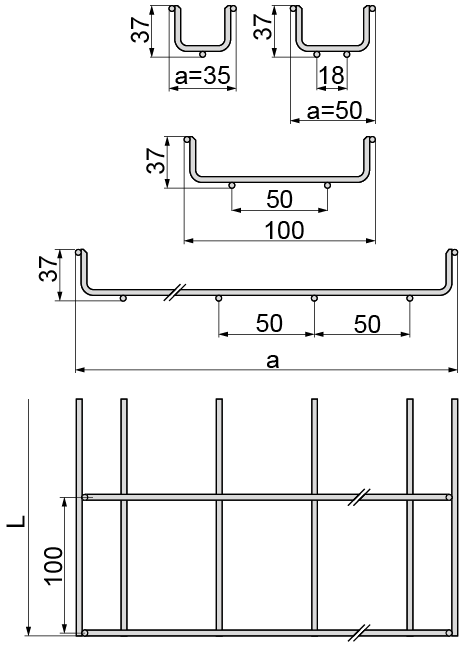

	Symbol	Catalogue number	Width a (mm)	Length L (mm)	Weight (1m) (kg)	Quantity in box (pcs. / m.)	Effective section
35 mm 450 mm
	KSG35H35/3	930210	35	3 000 mm	0.36 kg	8 / 24 pcs. / m.	450	Add
50 mm 800 mm
	KSG50H35/3	930215	50	3 000 mm	0.46 kg	8 / 24 pcs. / m.	800	Add
100 mm 1900 mm
	KSG100H35/3	930220	100	3 000 mm	0.51 kg	8 / 24 pcs. / m.	1,900	Add
200 mm 4200 mm
	KSG200H35/3	930230	200	3 000 mm	0.78 kg	6 / 18 pcs. / m.	4,200	Add
300 mm 6500 mm
	KSG300H35/3	930240	300	3 000 mm	1.06 kg	6 / 18 pcs. / m.	6,500	Add
