KZLWCH100 Reinforced Cable Tray with Integral Connector

1.5 2.0
2.0 Cable Management Solutions – BAKS Cable Management Solutions – BAKS
Information

Cable routing.

Material

F - hot dip galvanised steel PN-EN ISO 1461:2023-02

Available finishes:

E - stainless steel

L - painting in standard RAL colour

Additional information

Advantage:
Additional top bendings increase loading capacity and protect
the cables against damage during laying.
For the installation use 10 sets of Screw SGKFM8x14
or SGFM8x14.

Note
Integrated couplers. Assembly without additional couplers.
Product versions
Cable Management Solutions – BAKS Cable Management Solutions – BAKS
Add

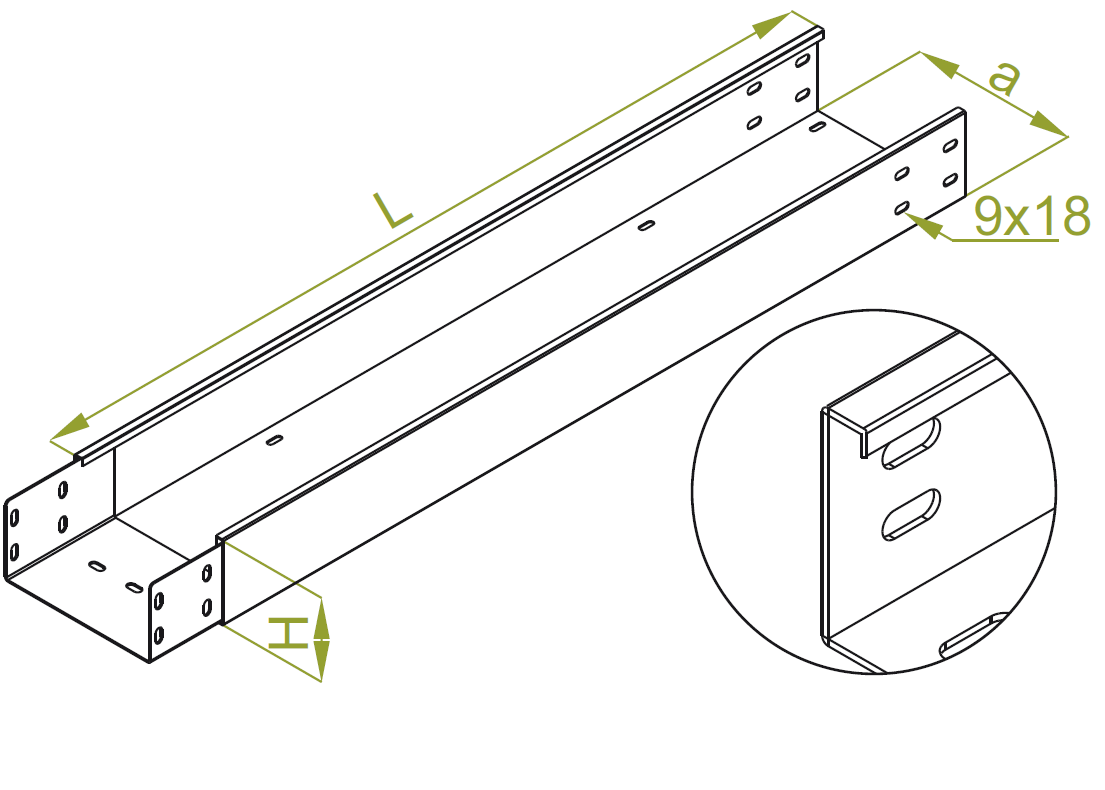

Symbol Width a (mm) Length L (mm) Weight (1m) (kg) Catalogue number Quantity in box (pcs. / m.) Effective section
Cable Management Solutions – BAKS
100 mm
Cable Management Solutions – BAKS
9800 mm
KZLWC100H100/3
Cable Management Solutions – BAKS
100
Cable Management Solutions – BAKS
3 000 mm
Cable Management Solutions – BAKS
6.17 kg
Cable Management Solutions – BAKS
315910
Cable Management Solutions – BAKS
4 / 12 pcs. / m.
Cable Management Solutions – BAKS
9,800 		Add
Cable Management Solutions – BAKS
200 mm
Cable Management Solutions – BAKS
19800 mm
KZLWC200H100/3
Cable Management Solutions – BAKS
200
Cable Management Solutions – BAKS
3 000 mm
Cable Management Solutions – BAKS
8.22 kg
Cable Management Solutions – BAKS
315920
Cable Management Solutions – BAKS
2 / 6 pcs. / m.
Cable Management Solutions – BAKS
19,800 		Add
Cable Management Solutions – BAKS
300 mm
Cable Management Solutions – BAKS
29800 mm
KZLWC300H100/3
Cable Management Solutions – BAKS
300
Cable Management Solutions – BAKS
3 000 mm
Cable Management Solutions – BAKS
10.16 kg
Cable Management Solutions – BAKS
315930
Cable Management Solutions – BAKS
2 / 6 pcs. / m.
Cable Management Solutions – BAKS
29,800 		Add
Cable Management Solutions – BAKS
400 mm
Cable Management Solutions – BAKS
39800 mm
KZLWC400H100/3
Cable Management Solutions – BAKS
400
Cable Management Solutions – BAKS
3 000 mm
Cable Management Solutions – BAKS
12.11 kg
Cable Management Solutions – BAKS
315940
Cable Management Solutions – BAKS
2 / 6 pcs. / m.
Cable Management Solutions – BAKS
39,800 		Add
Cable Management Solutions – BAKS
500 mm
Cable Management Solutions – BAKS
49800 mm
KZLWC500H100/3
Cable Management Solutions – BAKS
500
Cable Management Solutions – BAKS
3 000 mm
Cable Management Solutions – BAKS
14.06 kg
Cable Management Solutions – BAKS
315950
Cable Management Solutions – BAKS
2 / 6 pcs. / m.
Cable Management Solutions – BAKS
49,800 		Add
Cable Management Solutions – BAKS
600 mm
Cable Management Solutions – BAKS
59800 mm
KZLWC600H100/3
Cable Management Solutions – BAKS
600
Cable Management Solutions – BAKS
3 000 mm
Cable Management Solutions – BAKS
16.01 kg
Cable Management Solutions – BAKS
315960
Cable Management Solutions – BAKS
2 / 6 pcs. / m.
Cable Management Solutions – BAKS
59,800 		Add
