KZLWCH50 Reinforced Cable Tray with Integral Connector

2.0 Cable Management Solutions – BAKS Cable Management Solutions – BAKS
Information

Routing a cable route.

Material

F - hot dip galvanised steel PN-EN ISO 1461:2023-02

Available finishes:

E - stainless steel

L - painting in standard RAL colour

Additional information

– additional bends increase strength and protect cables from damage during laying

– to connect 2 trays, use 10 sets of SGKFM6x12 or SGFM6x12 bolts

– drainage and cable fixing holes every 500 mm

Note
Connecting of trays with the use of couplers only.
Product versions
Cable Management Solutions – BAKS Cable Management Solutions – BAKS

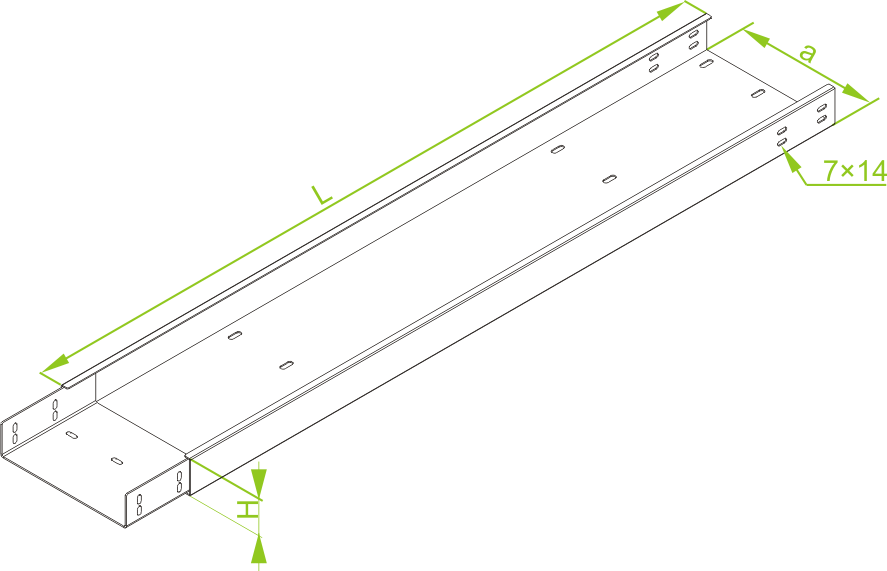

Symbol Width a (mm) Length L (mm) Weight (1m) (kg) Catalogue number Quantity in box (pcs. / m.) Effective section
Cable Management Solutions – BAKS
100 mm
Cable Management Solutions – BAKS
4800 mm
KZLWC100H50/3
Cable Management Solutions – BAKS
100
Cable Management Solutions – BAKS
3 000 mm
Cable Management Solutions – BAKS
4.43 kg
Cable Management Solutions – BAKS
355910
Cable Management Solutions – BAKS
6 / 18 pcs. / m.
Cable Management Solutions – BAKS
4,800
Add
Cable Management Solutions – BAKS
200 mm
Cable Management Solutions – BAKS
9800 mm
KZLWC200H50/3
Cable Management Solutions – BAKS
200
Cable Management Solutions – BAKS
3 000 mm
Cable Management Solutions – BAKS
6.18 kg
Cable Management Solutions – BAKS
355920
Cable Management Solutions – BAKS
4 / 12 pcs. / m.
Cable Management Solutions – BAKS
9,800
Add
Cable Management Solutions – BAKS
300 mm
Cable Management Solutions – BAKS
14800 mm
KZLWC300H50/3
Cable Management Solutions – BAKS
300
Cable Management Solutions – BAKS
3 000 mm
Cable Management Solutions – BAKS
8.03 kg
Cable Management Solutions – BAKS
355930
Cable Management Solutions – BAKS
4 / 12 pcs. / m.
Cable Management Solutions – BAKS
14,800
Add
Cable Management Solutions – BAKS
400 mm
Cable Management Solutions – BAKS
19800 mm
KZLWC400H50/3
Cable Management Solutions – BAKS
400
Cable Management Solutions – BAKS
3 000 mm
Cable Management Solutions – BAKS
9.87 kg
Cable Management Solutions – BAKS
355940
Cable Management Solutions – BAKS
2 / 6 pcs. / m.
Cable Management Solutions – BAKS
19,800
Add
Cable Management Solutions – BAKS
500 mm
Cable Management Solutions – BAKS
24800 mm
KZLWC500H50/3
Cable Management Solutions – BAKS
500
Cable Management Solutions – BAKS
3 000 mm
Cable Management Solutions – BAKS
11.82 kg
Cable Management Solutions – BAKS
355950
Cable Management Solutions – BAKS
2 / 6 pcs. / m.
Cable Management Solutions – BAKS
24,800
Add
Cable Management Solutions – BAKS
600 mm
Cable Management Solutions – BAKS
29800 mm
KZLWC600H50/3
Cable Management Solutions – BAKS
600
Cable Management Solutions – BAKS
3 000 mm
Cable Management Solutions – BAKS
13.67 kg
Cable Management Solutions – BAKS
355960
Cable Management Solutions – BAKS
2 / 6 pcs. / m.
Cable Management Solutions – BAKS
29,800
Add
