KZPH200 Cable Tray

1.5 2.0
1.5
Information

Cable routing.

Material

F - hot dip galvanised steel PN-EN ISO 1461:2023-02

Available finishes:

E - stainless steel

L - painting in standard RAL colour

Additional information

– for stable connection of 2 trays it is necessary to use 2 LZCH200 connectors or 1 LCC...H200 and connector 24 SGKFM8x14 or SGFM8x14 bolts

– drainage and cable fixing holes every 500 mm

Note
Connecting of trays with the use of couplers only.
Product versions
Cable Management Solutions – BAKS Cable Management Solutions – BAKS
Add

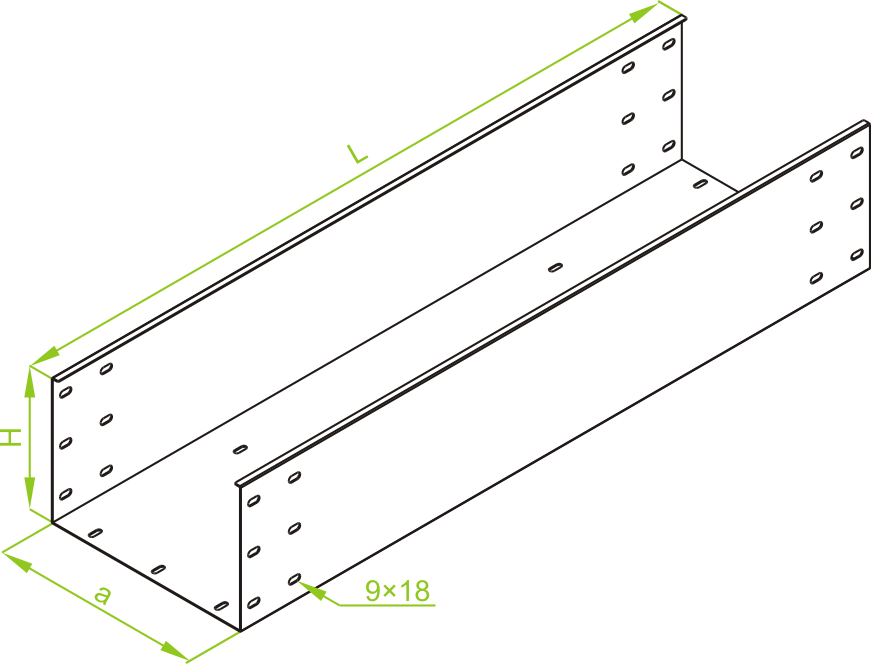

Symbol Length L (mm) Width a (mm) Catalogue number Quantity in box (pcs. / m.) Weight (1m) (kg) Effective section 3D file
Cable Management Solutions – BAKS
200 mm
Cable Management Solutions – BAKS
39800 mm
KZP200H200/3
Cable Management Solutions – BAKS
3 000 mm
Cable Management Solutions – BAKS
200
Cable Management Solutions – BAKS
370220
Cable Management Solutions – BAKS
2 / 6 pcs. / m.
Cable Management Solutions – BAKS
7.66 kg
Cable Management Solutions – BAKS
39,800 		Plik *.std Add
Cable Management Solutions – BAKS
300 mm
Cable Management Solutions – BAKS
59800 mm
KZP300H200/3
Cable Management Solutions – BAKS
3 000 mm
Cable Management Solutions – BAKS
300
Cable Management Solutions – BAKS
370230
Cable Management Solutions – BAKS
2 / 6 pcs. / m.
Cable Management Solutions – BAKS
8.89 kg
Cable Management Solutions – BAKS
59,800 		Plik *.std Add
Cable Management Solutions – BAKS
400 mm
Cable Management Solutions – BAKS
79800 mm
KZP400H200/3
Cable Management Solutions – BAKS
3 000 mm
Cable Management Solutions – BAKS
400
Cable Management Solutions – BAKS
370240
Cable Management Solutions – BAKS
2 / 6 pcs. / m.
Cable Management Solutions – BAKS
10.13 kg
Cable Management Solutions – BAKS
79,800 		Plik *.std Add
Cable Management Solutions – BAKS
500 mm
Cable Management Solutions – BAKS
99800 mm
KZP500H200/3
Cable Management Solutions – BAKS
3 000 mm
Cable Management Solutions – BAKS
500
Cable Management Solutions – BAKS
370250
Cable Management Solutions – BAKS
2 / 6 pcs. / m.
Cable Management Solutions – BAKS
11.37 kg
Cable Management Solutions – BAKS
99,800 		Plik *.std Add
Cable Management Solutions – BAKS
600 mm
Cable Management Solutions – BAKS
119800 mm
KZP600H200/3
Cable Management Solutions – BAKS
3 000 mm
Cable Management Solutions – BAKS
600
Cable Management Solutions – BAKS
370260
Cable Management Solutions – BAKS
2 / 6 pcs. / m.
Cable Management Solutions – BAKS
12.60 kg
Cable Management Solutions – BAKS
119,800 		Plik *.std Add
Load
Cable Management Solutions – BAKS Cable Management Solutions – BAKS

Qdop. (kN/m)
0.0
L (m)
0.0
Filling value
Cable Management Solutions – BAKS Cable Management Solutions – BAKS
Cable Management Solutions – BAKS
Cable 1
Cable Management Solutions – BAKS
Cable Management Solutions – BAKS
Cable 2
Cable Management Solutions – BAKS
Cable Management Solutions – BAKS
Cable 3
Cable Management Solutions – BAKS
Cable Management Solutions – BAKS
Cable 4
Cable Management Solutions – BAKS
Cable Management Solutions – BAKS


Filling reserve (%)
Cable Management Solutions – BAKS
Filling correction (%)
Cable Management Solutions – BAKS
