L1KDSZ...H60/01 Connector Click

Name: Baks Kazimierz Sielski
Address: Jagodne 5, Karczew, mazowieckie, 05-480
Telephone: 227108100

0.0

Information

Screwless extension of the cable route.

Material

G - galvanised

Available finishes:

F - hot dip galvanised steel PN-EN ISO 1461:2023-02

L - painting in standard RAL colour

Product versions

Add

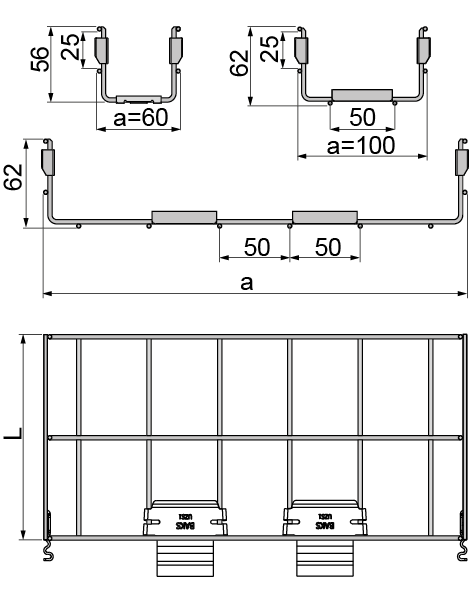

	Symbol	Catalogue number	Width a (mm)	Length L (mm)	Weight 1 pc. (kg)	Quantity (pcs.)
60 mm mm
	L1KDSZ60H60/01	946406	60	100 mm	0.06	10	Add
100 mm mm
	L1KDSZ100H60/01	946410	100	100 mm	0.08	10	Add
150 mm mm
	L1KDSZ150H60/01	946415	150	100 mm	0.09	10	Add
200 mm mm
	L1KDSZ200H60/01	946420	200	100 mm	0.11	5	Add
300 mm mm
	L1KDSZ300H60/01	946430	300	100 mm	0.18	5	Add
400 mm mm
	L1KDSZ400H60/01	946440	400	100 mm	0.23	2	Add
500 mm mm
	L1KDSZ500H60/01	946450	500	100 mm	0.32	2	Add
600 mm mm
	L1KDSZ600H60/01	946460	600	100 mm	0.37	2	Add
