L1KDSZ...H60/05 Connector Click

Name: Baks Kazimierz Sielski
Address: Jagodne 5, Karczew, mazowieckie, 05-480
Telephone: 227108100

0.0

Information

Screwless extension of the cable route.

Material

G - galvanised

Available finishes:

F - hot dip galvanised steel PN-EN ISO 1461:2023-02

L - painting in standard RAL colour

Additional information

– the number of bottom connectors in trays with widths: 100-200 mm - 1 pc., 300-600 mm - 2 pcs.

Product versions

Add

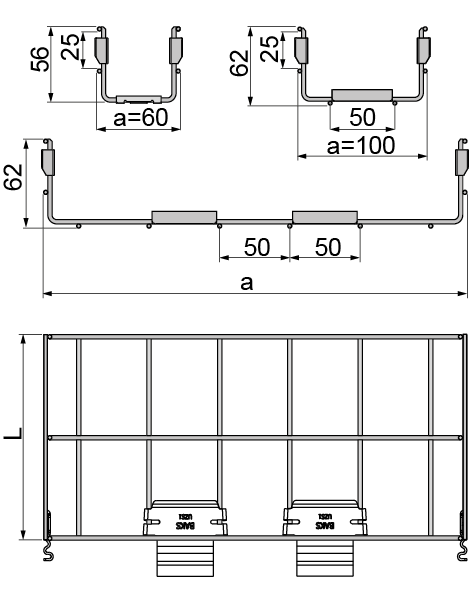

	Symbol	Catalogue number	Width a (mm)	Length L (mm)	Weight 1 pc. (kg)	Quantity (pcs.)
60 mm mm
	L1KDSZ60H60/05	946606	60	500 mm	0.30	10	Add
100 mm mm
	L1KDSZ100H60/05	946610	100	500 mm	0.40	10	Add
150 mm mm
	L1KDSZ150H60/05	946615	150	500 mm	0.45	10	Add
200 mm mm
	L1KDSZ200H60/05	946620	200	500 mm	0.55	5	Add
300 mm mm
	L1KDSZ300H60/05	946630	300	500 mm	0.90	5	Add
400 mm mm
	L1KDSZ400H60/05	946640	400	500 mm	1.15	2	Add
500 mm mm
	L1KDSZ500H60/05	946650	500	500 mm	1.60	2	Add
600 mm mm
	L1KDSZ600H60/05	946660	600	500 mm	1.85	2	Add
