L2KDSZ...H60/02 Connector Click

Name: Baks Kazimierz Sielski
Address: Jagodne 5, Karczew, mazowieckie, 05-480
Telephone: 227108100

0.0

Information

Screwless extension of the cable route.

Material

G - galvanised

Available finishes:

F - hot dip galvanised steel PN-EN ISO 1461:2023-02

L - painting in standard RAL colour

Additional information

– the number of bottom connectors in trays with widths: 100-200 mm - 1 pc., 300-600 mm - 2 pcs.

Product versions

Add

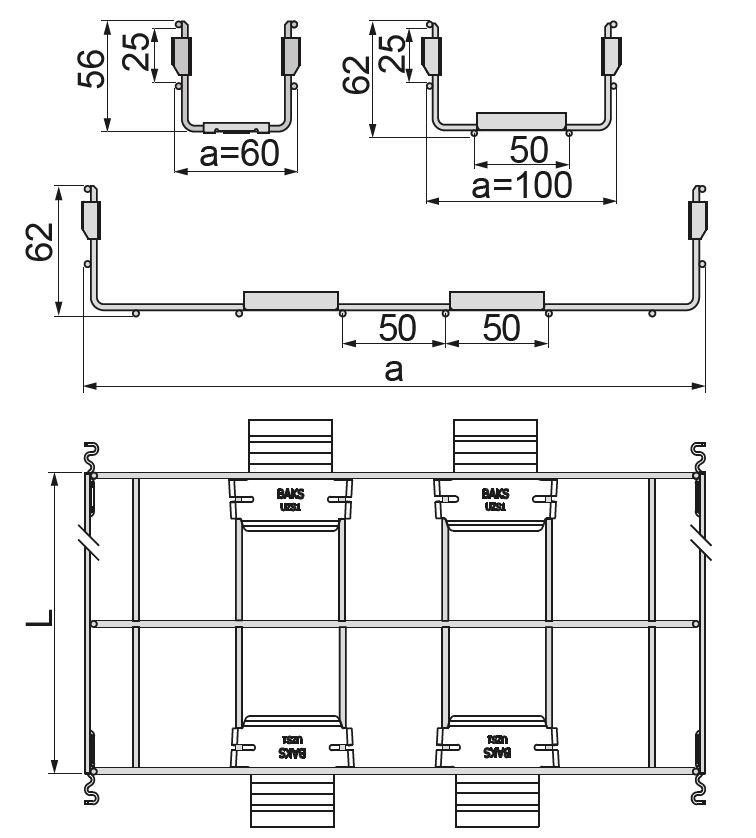

	Symbol	Catalogue number	Width a (mm)	Length L (mm)	Weight 1 pc. (kg)	Quantity (pcs.)
60 mm mm
	L2KDSZ60H60/02	946306	60	200 mm	0.12	10	Add
100 mm mm
	L2KDSZ100H60/02	946310	100	200 mm	0.16	10	Add
150 mm mm
	L2KDSZ150H60/02	946315	150	200 mm	0.18	10	Add
200 mm mm
	L2KDSZ200H60/02	946320	200	200 mm	0.22	5	Add
300 mm mm
	L2KDSZ300H60/02	946330	300	200 mm	0.36	5	Add
400 mm mm
	L2KDSZ400H60/02	946340	400	200 mm	0.46	2	Add
500 mm mm
	L2KDSZ500H60/02	946350	500	200 mm	0.64	2	Add
600 mm mm
	L2KDSZ600H60/02	946360	600	200 mm	0.74	2	Add

Examples
