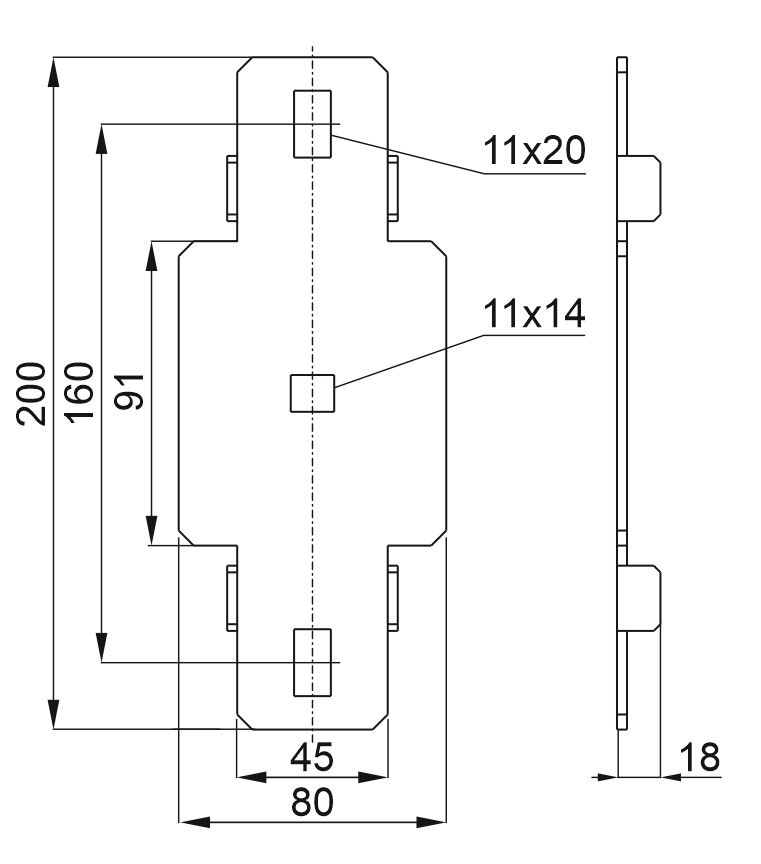

Connection of bracings made of CMP... channels
with CWE100H50...NMC vertical support posts of
single-support freestanding systems
Material
S350GD steel in:
Magnelis®, MagiZinc®, PosMAC coating
Additional information
- longitudinal perforation allows for mounting the element to
support posts in the correct position
- made of steel in Magnelis® coating with very high corrosion
resistance
- provides a stable connection between support posts
and bracings made of channels
- assembly to support post with 1 or 2 screws possible
For the assembly use 3 x SGKFM10x20PV Screw Sets
