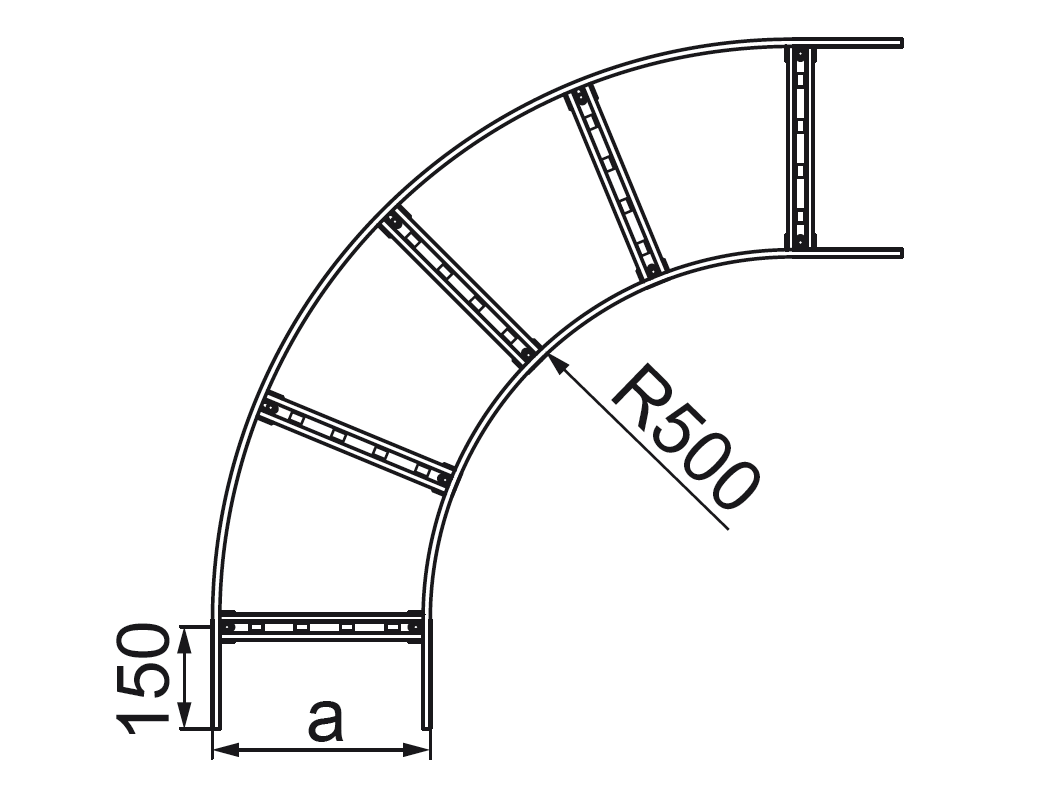

LDSC...H110 90° Horizontal Bend

2.0
Information

Changing the direction of the cable route.

Material

S - Sendzimir method galvanised steel PN-EN 10346:2015-09

Available finishes:

F - hot dip galvanised steel PN-EN ISO 1461:2023-02

E - stainless steel

L - painting in standard RAL colour

Additional information

– for large orders, it is possible to make fittings of any radius

– to connect the fitting to the ladder it is necessary to use LSSU... fitting connectors and SGKM8x16 bolts

Product versions
Cable Management Solutions – BAKS Cable Management Solutions – BAKS
Add
Symbol Catalogue number Width a (mm) Weight 1 pc. (kg) Quantity (pcs.)
Cable Management Solutions – BAKS
200 mm
Cable Management Solutions – BAKS
mm
LDSC200H110
Cable Management Solutions – BAKS
412522
Cable Management Solutions – BAKS
200
Cable Management Solutions – BAKS
6.19
Cable Management Solutions – BAKS
2 		Add
Cable Management Solutions – BAKS
300 mm
Cable Management Solutions – BAKS
mm
LDSC300H110
Cable Management Solutions – BAKS
412532
Cable Management Solutions – BAKS
300
Cable Management Solutions – BAKS
6.99
Cable Management Solutions – BAKS
2 		Add
Cable Management Solutions – BAKS
400 mm
Cable Management Solutions – BAKS
mm
LDSC400H110
Cable Management Solutions – BAKS
412542
Cable Management Solutions – BAKS
400
Cable Management Solutions – BAKS
8.04
Cable Management Solutions – BAKS
1 		Add
Cable Management Solutions – BAKS
500 mm
Cable Management Solutions – BAKS
mm
LDSC500H110
Cable Management Solutions – BAKS
412552
Cable Management Solutions – BAKS
500
Cable Management Solutions – BAKS
8.78
Cable Management Solutions – BAKS
1 		Add
Cable Management Solutions – BAKS
600 mm
Cable Management Solutions – BAKS
mm
LDSC600H110
Cable Management Solutions – BAKS
412562
Cable Management Solutions – BAKS
600
Cable Management Solutions – BAKS
10.23
Cable Management Solutions – BAKS
1 		Add
