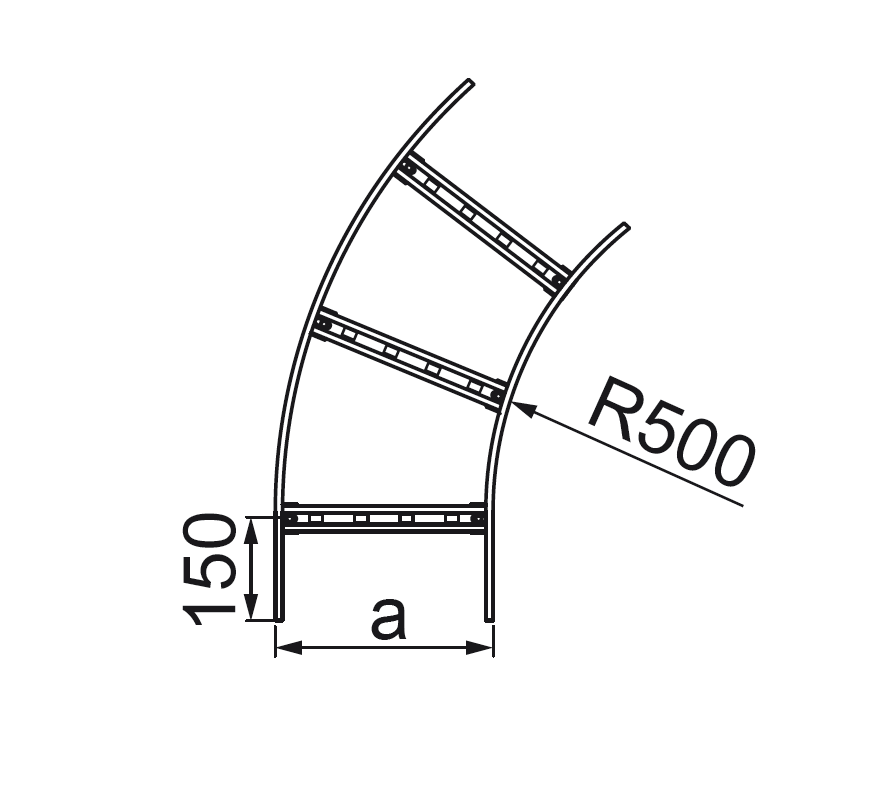

LDSMT...H150 45° Horizontal Bend

3.0
Information

Changing the direction of the cable route.

Material

S - Sendzimir method galvanised steel PN-EN 10346:2015-09

Available finishes:

F - hot dip galvanised steel PN-EN ISO 1461:2023-02

E - stainless steel

L - painting in standard RAL colour

Additional information

– for large orders, it is possible to make fittings of any radius

– to connect the fitting to the ladder it is necessary to use LSSU... fitting connectors and SGKM8x16 bolts

Product versions
Cable Management Solutions – BAKS Cable Management Solutions – BAKS
Add
Symbol Width a (mm) Weight 1 pc. (kg) Catalogue number Quantity (pcs.)
Cable Management Solutions – BAKS
200 mm
Cable Management Solutions – BAKS
mm
LDSMT200H150
Cable Management Solutions – BAKS
200
Cable Management Solutions – BAKS
7.45
Cable Management Solutions – BAKS
435223
Cable Management Solutions – BAKS
1 		Add
Cable Management Solutions – BAKS
300 mm
Cable Management Solutions – BAKS
mm
LDSMT300H150
Cable Management Solutions – BAKS
300
Cable Management Solutions – BAKS
8.18
Cable Management Solutions – BAKS
435233
Cable Management Solutions – BAKS
1 		Add
Cable Management Solutions – BAKS
400 mm
Cable Management Solutions – BAKS
mm
LDSMT400H150
Cable Management Solutions – BAKS
400
Cable Management Solutions – BAKS
8.96
Cable Management Solutions – BAKS
435243
Cable Management Solutions – BAKS
1 		Add
Cable Management Solutions – BAKS
500 mm
Cable Management Solutions – BAKS
mm
LDSMT500H150
Cable Management Solutions – BAKS
500
Cable Management Solutions – BAKS
9.77
Cable Management Solutions – BAKS
435253
Cable Management Solutions – BAKS
1 		Add
Cable Management Solutions – BAKS
600 mm
Cable Management Solutions – BAKS
mm
LDSMT600H150
Cable Management Solutions – BAKS
600
Cable Management Solutions – BAKS
11.09
Cable Management Solutions – BAKS
435263
Cable Management Solutions – BAKS
1 		Add
