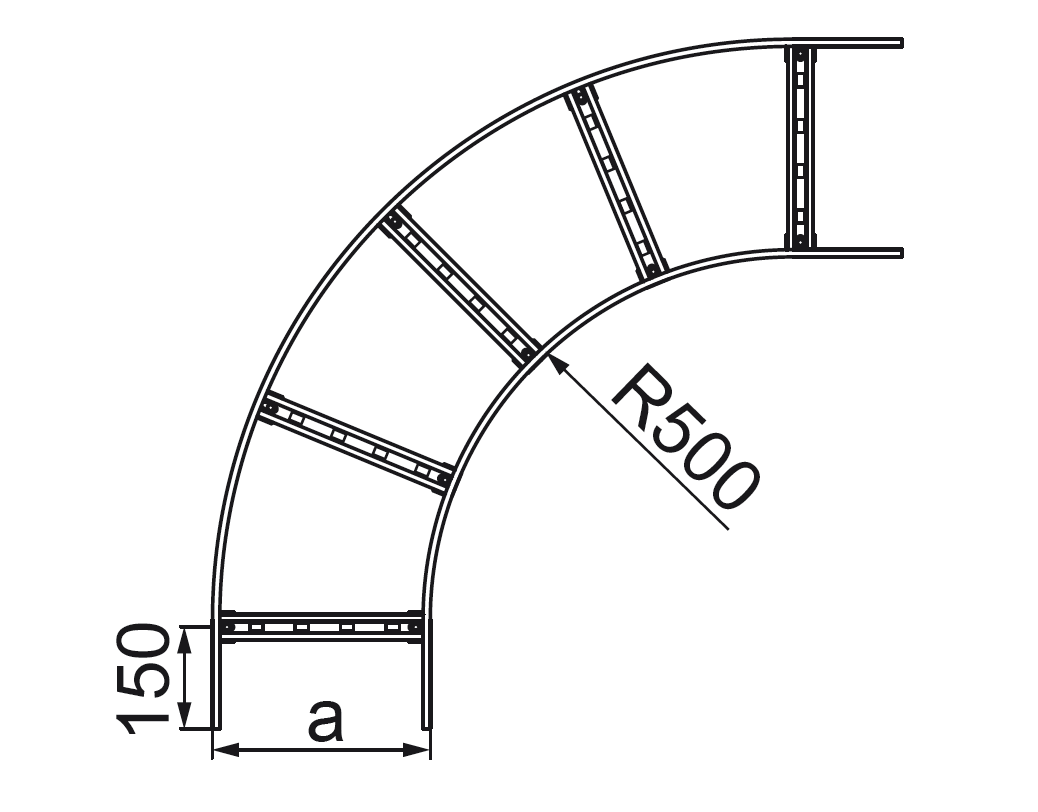

LDST...H150 90° Horizontal Bend

3.0
Information

Changing the direction of the cable route.

Material

S - Sendzimir method galvanised steel PN-EN 10346:2015-09

Available finishes:

F - hot dip galvanised steel PN-EN ISO 1461:2023-02

E - stainless steel

L - painting in standard RAL colour

Additional information

– for large orders, it is possible to make fittings of any radius

– to connect the fitting to the ladder it is necessary to use LSSU... fitting connectors and SGKM8x16 bolts

Product versions
Cable Management Solutions – BAKS Cable Management Solutions – BAKS
Add
Symbol Width a (mm) Weight 1 pc. (kg) Catalogue number Quantity (pcs.)
Cable Management Solutions – BAKS
200 mm
Cable Management Solutions – BAKS
mm
LDST200H150
Cable Management Solutions – BAKS
200
Cable Management Solutions – BAKS
11.27
Cable Management Solutions – BAKS
432523
Cable Management Solutions – BAKS
1 		Add
Cable Management Solutions – BAKS
300 mm
Cable Management Solutions – BAKS
mm
LDST300H150
Cable Management Solutions – BAKS
300
Cable Management Solutions – BAKS
12.36
Cable Management Solutions – BAKS
432533
Cable Management Solutions – BAKS
1 		Add
Cable Management Solutions – BAKS
400 mm
Cable Management Solutions – BAKS
mm
LDST400H150
Cable Management Solutions – BAKS
400
Cable Management Solutions – BAKS
13.64
Cable Management Solutions – BAKS
432543
Cable Management Solutions – BAKS
1 		Add
Cable Management Solutions – BAKS
500 mm
Cable Management Solutions – BAKS
mm
LDST500H150
Cable Management Solutions – BAKS
500
Cable Management Solutions – BAKS
14.76
Cable Management Solutions – BAKS
432553
Cable Management Solutions – BAKS
1 		Add
Cable Management Solutions – BAKS
600 mm
Cable Management Solutions – BAKS
mm
LDST600H150
Cable Management Solutions – BAKS
600
Cable Management Solutions – BAKS
15.97
Cable Management Solutions – BAKS
432563
Cable Management Solutions – BAKS
1 		Add
