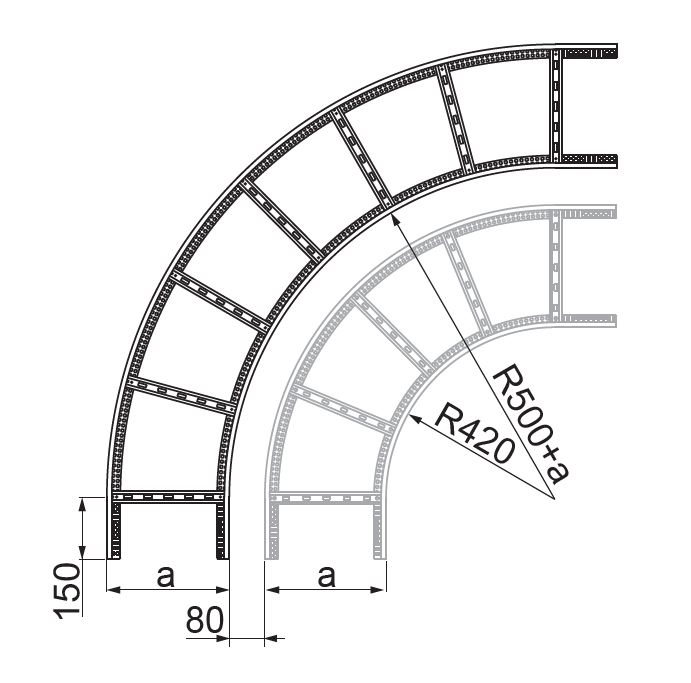

LDZC...H120N 90° Horizontal Bend - External

2.0
Information

Changing the direction of the cable route.

Material

S - Sendzimir method galvanised steel PN-EN 10346:2015-09

Available finishes:

F - hot dip galvanised steel PN-EN ISO 1461:2023-02

E - stainless steel

L - painting in standard RAL colour

Additional information

– use 4 LDPH... or LDCH... connectors and 32 sets of SGKM8x14 or SGM8x14 bolts for mounting

Product versions
Cable Management Solutions – BAKS Cable Management Solutions – BAKS
Symbol Width a (mm) Weight 1 pc. (kg) Catalogue number Quantity (pcs.) 3D file
Cable Management Solutions – BAKS
100 mm
Cable Management Solutions – BAKS
mm
LDZC100H120N
Cable Management Solutions – BAKS
100
Cable Management Solutions – BAKS
6.56
Cable Management Solutions – BAKS
483910
Cable Management Solutions – BAKS
1
Plik *.std Add
Cable Management Solutions – BAKS
200 mm
Cable Management Solutions – BAKS
mm
LDZC200H120N
Cable Management Solutions – BAKS
200
Cable Management Solutions – BAKS
8.30
Cable Management Solutions – BAKS
483920
Cable Management Solutions – BAKS
1
Plik *.std Add
Cable Management Solutions – BAKS
300 mm
Cable Management Solutions – BAKS
mm
LDZC300H120N
Cable Management Solutions – BAKS
300
Cable Management Solutions – BAKS
10.13
Cable Management Solutions – BAKS
483930
Cable Management Solutions – BAKS
1
Plik *.std Add
Cable Management Solutions – BAKS
400 mm
Cable Management Solutions – BAKS
mm
LDZC400H120N
Cable Management Solutions – BAKS
400
Cable Management Solutions – BAKS
11.87
Cable Management Solutions – BAKS
483940
Cable Management Solutions – BAKS
1
Plik *.std Add
Cable Management Solutions – BAKS
500 mm
Cable Management Solutions – BAKS
mm
LDZC500H120N
Cable Management Solutions – BAKS
500
Cable Management Solutions – BAKS
13.59
Cable Management Solutions – BAKS
483950
Cable Management Solutions – BAKS
1
Plik *.std Add
Cable Management Solutions – BAKS
600 mm
Cable Management Solutions – BAKS
mm
LDZC600H120N
Cable Management Solutions – BAKS
600
Cable Management Solutions – BAKS
15.54
Cable Management Solutions – BAKS
483960
Cable Management Solutions – BAKS
1
Plik *.std Add
