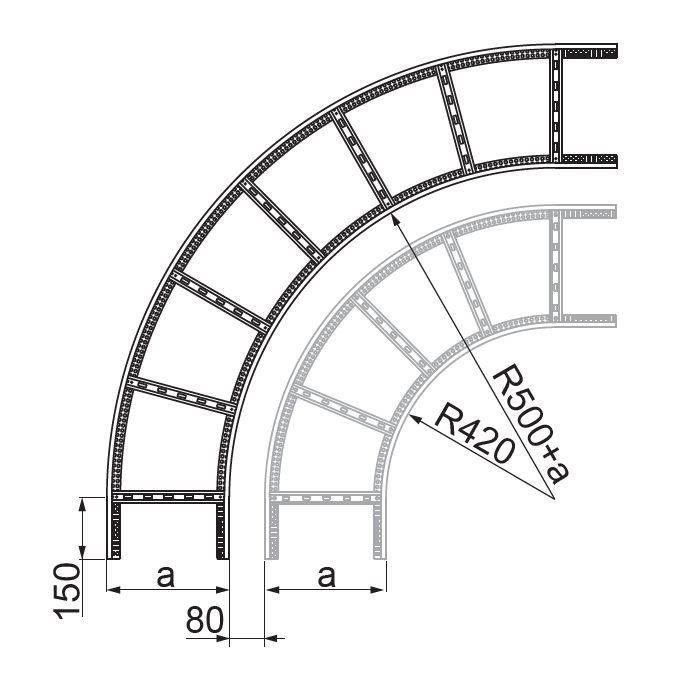

LDZC...H60N 90° Horizontal Bend - External

2.0
Information

Changing the direction of the cable route.

Material

S - Sendzimir method galvanised steel PN-EN 10346:2015-09

Available finishes:

F - hot dip galvanised steel PN-EN ISO 1461:2023-02

E - stainless steel

L - painting in standard RAL colour

Additional information

– use 4 LDPH60 or LDC/LDOCH60 and 16 sets of SGKM8x14 or SGM8x14 bolts for mounting

Product versions
Cable Management Solutions – BAKS Cable Management Solutions – BAKS
Symbol Width a (mm) Weight 1 pc. (kg) Catalogue number Quantity (pcs.) 3D file
Cable Management Solutions – BAKS
100 mm
Cable Management Solutions – BAKS
mm
LDZC100H60N
Cable Management Solutions – BAKS
100
Cable Management Solutions – BAKS
4.28
Cable Management Solutions – BAKS
467110
Cable Management Solutions – BAKS
2
Plik *.std Add
Cable Management Solutions – BAKS
200 mm
Cable Management Solutions – BAKS
mm
LDZC200H60N
Cable Management Solutions – BAKS
200
Cable Management Solutions – BAKS
6.06
Cable Management Solutions – BAKS
467120
Cable Management Solutions – BAKS
2
Plik *.std Add
Cable Management Solutions – BAKS
300 mm
Cable Management Solutions – BAKS
mm
LDZC300H60N
Cable Management Solutions – BAKS
300
Cable Management Solutions – BAKS
7.89
Cable Management Solutions – BAKS
467130
Cable Management Solutions – BAKS
2
Plik *.std Add
Cable Management Solutions – BAKS
400 mm
Cable Management Solutions – BAKS
mm
LDZC400H60N
Cable Management Solutions – BAKS
400
Cable Management Solutions – BAKS
8.55
Cable Management Solutions – BAKS
467140
Cable Management Solutions – BAKS
2
Plik *.std Add
Cable Management Solutions – BAKS
500 mm
Cable Management Solutions – BAKS
mm
LDZC500H60N
Cable Management Solutions – BAKS
500
Cable Management Solutions – BAKS
9.89
Cable Management Solutions – BAKS
467150
Cable Management Solutions – BAKS
2
Plik *.std Add
Cable Management Solutions – BAKS
600 mm
Cable Management Solutions – BAKS
mm
LDZC600H60N
Cable Management Solutions – BAKS
600
Cable Management Solutions – BAKS
11.50
Cable Management Solutions – BAKS
467160
Cable Management Solutions – BAKS
2
Plik *.std Add
