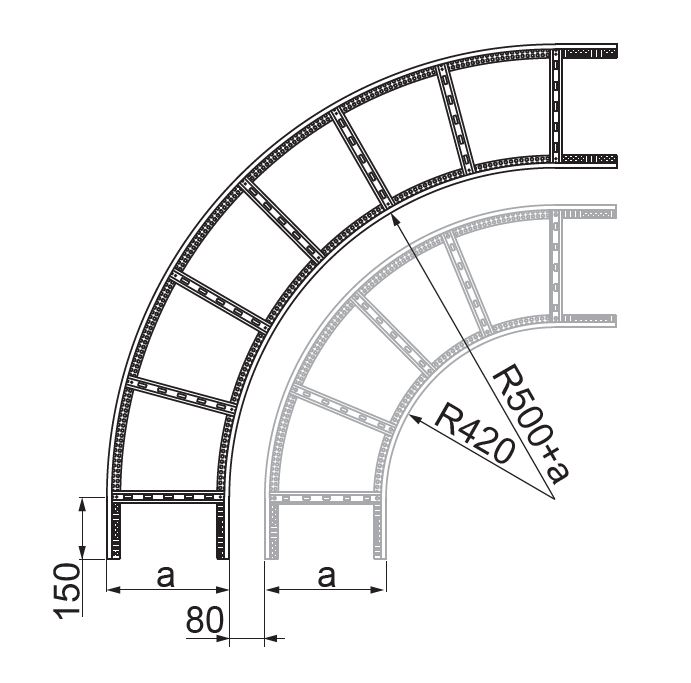

LDZP...H50N 90° Horizontal Bend - External

1.5
Information

Diversion in cable routing.

Material

Steel, strip-galv. acc. to the Sendzimir
method to PN-EN 10346:2015-09 (SG)
Available finishes:
F - steel, hot-dip galv.
to PN-EN ISO 1461:2011 (HDG)
E - stainless steel (SS), grade 1.4301 (AISI304)
L - powder coating in a full range of colours (PC)

Additional information

For the assembly use 4 Straight Connector LDCH45N
and 16 sets of Screw SGKM8x14 or SGM8x14

Product versions
Cable Management Solutions – BAKS Cable Management Solutions – BAKS
Symbol Width a (mm) Weight 1 pc. (kg) Catalogue number Quantity (pcs.)
Cable Management Solutions – BAKS
100 mm
Cable Management Solutions – BAKS
mm
LDZP100H50N
Cable Management Solutions – BAKS
100
Cable Management Solutions – BAKS
3.07
Cable Management Solutions – BAKS
457010
Cable Management Solutions – BAKS
2
Add
Cable Management Solutions – BAKS
200 mm
Cable Management Solutions – BAKS
mm
LDZP200H50N
Cable Management Solutions – BAKS
200
Cable Management Solutions – BAKS
4.10
Cable Management Solutions – BAKS
457020
Cable Management Solutions – BAKS
2
Add
Cable Management Solutions – BAKS
300 mm
Cable Management Solutions – BAKS
mm
LDZP300H50N
Cable Management Solutions – BAKS
300
Cable Management Solutions – BAKS
5.15
Cable Management Solutions – BAKS
457030
Cable Management Solutions – BAKS
2
Add
Cable Management Solutions – BAKS
400 mm
Cable Management Solutions – BAKS
mm
LDZP400H50N
Cable Management Solutions – BAKS
400
Cable Management Solutions – BAKS
6.19
Cable Management Solutions – BAKS
457040
Cable Management Solutions – BAKS
2
Add
Cable Management Solutions – BAKS
500 mm
Cable Management Solutions – BAKS
mm
LDZP500H50N
Cable Management Solutions – BAKS
500
Cable Management Solutions – BAKS
7.16
Cable Management Solutions – BAKS
457050
Cable Management Solutions – BAKS
2
Add
Cable Management Solutions – BAKS
600 mm
Cable Management Solutions – BAKS
mm
LDZP600H50N
Cable Management Solutions – BAKS
600
Cable Management Solutions – BAKS
8.34
Cable Management Solutions – BAKS
457060
Cable Management Solutions – BAKS
2
Add
Examples
