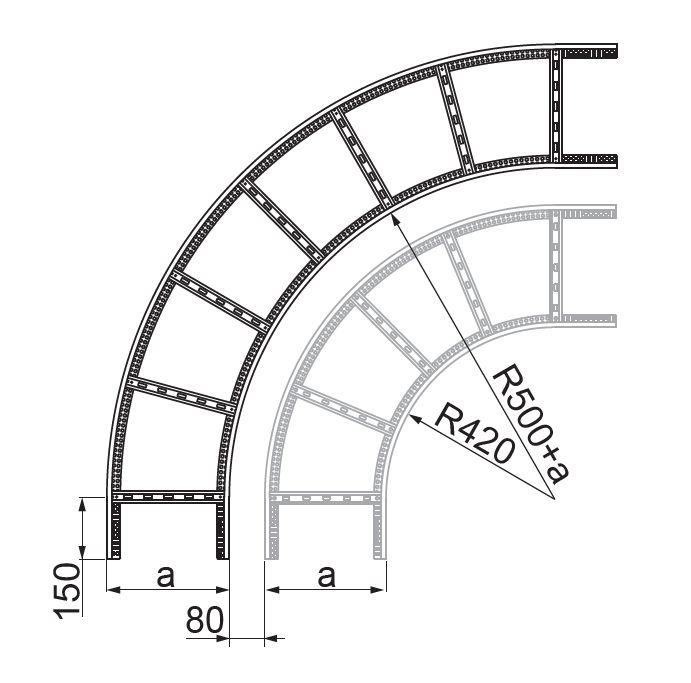

LDZP...H80N 90° Horizontal Bend - External

1.5
Information

Changing the direction of the cable route.

Material

S - Sendzimir method galvanised steel PN-EN 10346:2015-09

Available finishes:

F - hot dip galvanised steel PN-EN ISO 1461:2023-02

E - stainless steel

L - painting in standard RAL colour

Additional information

– use 4 LDPH... or LDCH... connectors and 32 sets of SGKM8x14 or SGM8x14 bolts for mounting

Product versions
Cable Management Solutions – BAKS Cable Management Solutions – BAKS
Symbol Width a (mm) Weight 1 pc. (kg) Catalogue number Quantity (pcs.)
Cable Management Solutions – BAKS
100 mm
Cable Management Solutions – BAKS
mm
LDZP100H80N
Cable Management Solutions – BAKS
100
Cable Management Solutions – BAKS
3.78
Cable Management Solutions – BAKS
496410
Cable Management Solutions – BAKS
1
Add
Cable Management Solutions – BAKS
200 mm
Cable Management Solutions – BAKS
mm
LDZP200H80N
Cable Management Solutions – BAKS
200
Cable Management Solutions – BAKS
4.95
Cable Management Solutions – BAKS
496420
Cable Management Solutions – BAKS
1
Add
Cable Management Solutions – BAKS
300 mm
Cable Management Solutions – BAKS
mm
LDZP300H80N
Cable Management Solutions – BAKS
300
Cable Management Solutions – BAKS
6.16
Cable Management Solutions – BAKS
496430
Cable Management Solutions – BAKS
1
Add
Cable Management Solutions – BAKS
400 mm
Cable Management Solutions – BAKS
mm
LDZP400H80N
Cable Management Solutions – BAKS
400
Cable Management Solutions – BAKS
7.33
Cable Management Solutions – BAKS
496440
Cable Management Solutions – BAKS
1
Add
Cable Management Solutions – BAKS
500 mm
Cable Management Solutions – BAKS
mm
LDZP500H80N
Cable Management Solutions – BAKS
500
Cable Management Solutions – BAKS
8.45
Cable Management Solutions – BAKS
496450
Cable Management Solutions – BAKS
1
Add
Cable Management Solutions – BAKS
600 mm
Cable Management Solutions – BAKS
mm
LDZP600H80N
Cable Management Solutions – BAKS
600
Cable Management Solutions – BAKS
9.77
Cable Management Solutions – BAKS
496460
Cable Management Solutions – BAKS
1
Add
