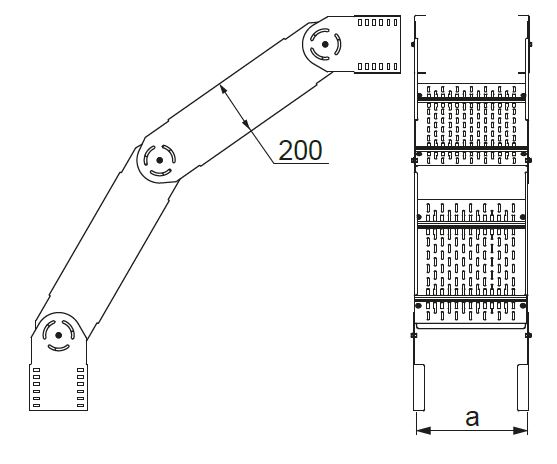

LLKSC...H200 Adjustable Vertical Bend

2.0
Information

Changing the direction of the cable route. Full range angle adjustment with locking mechanism.

Material

S - Sendzimir method galvanised steel PN-EN 10346:2015-09

Available finishes:

F - hot dip galvanised steel PN-EN ISO 1461:2023-02

E - stainless steel

L - painting in standard RAL colour

Additional information

– use SGKM8x16 bolts to connect the fitting with the tray

Product versions
Cable Management Solutions – BAKS Cable Management Solutions – BAKS
Add
Symbol Width a (mm) Weight 1 pc. (kg) Catalogue number Quantity (pcs.)
Cable Management Solutions – BAKS
200 mm
Cable Management Solutions – BAKS
mm
LLKSC200H200
Cable Management Solutions – BAKS
200
Cable Management Solutions – BAKS
17.34
Cable Management Solutions – BAKS
281622
Cable Management Solutions – BAKS
1 		Add
Cable Management Solutions – BAKS
300 mm
Cable Management Solutions – BAKS
mm
LLKSC300H200
Cable Management Solutions – BAKS
300
Cable Management Solutions – BAKS
17.94
Cable Management Solutions – BAKS
281632
Cable Management Solutions – BAKS
1 		Add
Cable Management Solutions – BAKS
400 mm
Cable Management Solutions – BAKS
mm
LLKSC400H200
Cable Management Solutions – BAKS
400
Cable Management Solutions – BAKS
18.45
Cable Management Solutions – BAKS
281642
Cable Management Solutions – BAKS
1 		Add
Cable Management Solutions – BAKS
500 mm
Cable Management Solutions – BAKS
mm
LLKSC500H200
Cable Management Solutions – BAKS
500
Cable Management Solutions – BAKS
19.05
Cable Management Solutions – BAKS
281652
Cable Management Solutions – BAKS
1 		Add
Cable Management Solutions – BAKS
600 mm
Cable Management Solutions – BAKS
mm
LLKSC600H200
Cable Management Solutions – BAKS
600
Cable Management Solutions – BAKS
19.55
Cable Management Solutions – BAKS
281662
Cable Management Solutions – BAKS
1 		Add
