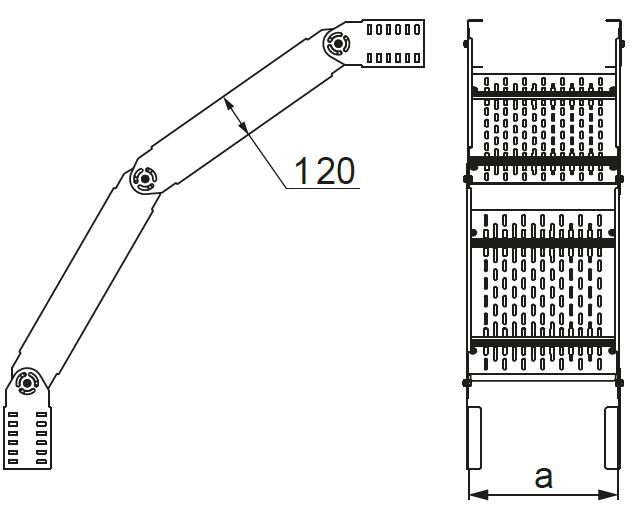

LLKSP...H120 Adjustable Vertical Bend

1.5
Information

Changing the direction of the cable route. Full range angle adjustment with locking mechanism.

Material

S - Sendzimir method galvanised steel PN-EN 10346:2015-09

Available finishes:

F - hot dip galvanised steel PN-EN ISO 1461:2023-02

E - stainless steel

L - painting in standard RAL colour

Additional information

– use SGKM8x16 bolts to connect the fitting with the tray

Product versions
Cable Management Solutions – BAKS Cable Management Solutions – BAKS
Add
Symbol Catalogue number Width a (mm) Weight 1 pc. (kg) Quantity (pcs.)
Cable Management Solutions – BAKS
200 mm
Cable Management Solutions – BAKS
mm
LLKSP200H120
Cable Management Solutions – BAKS
221921
Cable Management Solutions – BAKS
200
Cable Management Solutions – BAKS
8.92
Cable Management Solutions – BAKS
1 		Add
Cable Management Solutions – BAKS
300 mm
Cable Management Solutions – BAKS
mm
LLKSP300H120
Cable Management Solutions – BAKS
221931
Cable Management Solutions – BAKS
300
Cable Management Solutions – BAKS
9.42
Cable Management Solutions – BAKS
1 		Add
Cable Management Solutions – BAKS
400 mm
Cable Management Solutions – BAKS
mm
LLKSP400H120
Cable Management Solutions – BAKS
221941
Cable Management Solutions – BAKS
400
Cable Management Solutions – BAKS
9.84
Cable Management Solutions – BAKS
1 		Add
Cable Management Solutions – BAKS
500 mm
Cable Management Solutions – BAKS
mm
LLKSP500H120
Cable Management Solutions – BAKS
221951
Cable Management Solutions – BAKS
500
Cable Management Solutions – BAKS
10.35
Cable Management Solutions – BAKS
1 		Add
Cable Management Solutions – BAKS
600 mm
Cable Management Solutions – BAKS
mm
LLKSP600H120
Cable Management Solutions – BAKS
221961
Cable Management Solutions – BAKS
600
Cable Management Solutions – BAKS
10.76
Cable Management Solutions – BAKS
1 		Add
