LPDOZ...H30 Vertical Bend

Name: Baks Kazimierz Sielski
Address: Jagodne 5, Karczew, mazowieckie, 05-480
Telephone: 227108100

3.0

Information

Changing the direction of the cable route.

Material

F - hot dip galvanised steel PN-EN ISO 1461:2023-02

Available finishes:

E - stainless steel

Additional information

– use LDOUH30 connectors and SGKFM8x16 bolts for mounting

Product versions

Add

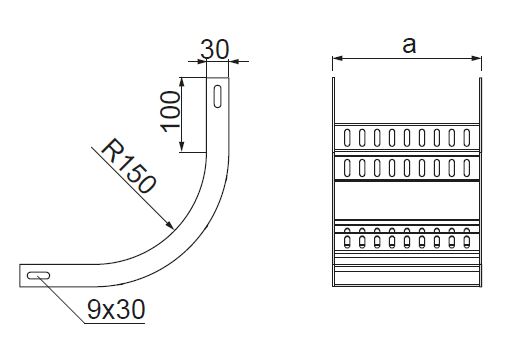

	Symbol	Catalogue number	Width a (mm)	Weight 1 pc. (kg)	Quantity (pcs.)
100 mm mm
	LPDOZ100H30	413110	100	2.87	1	Add
150 mm mm
	LPDOZ150H30	413115	150	3.09	1	Add
200 mm mm
	LPDOZ200H30	463320	200	3.30	1	Add
250 mm mm
	LPDOZ250H30	413125	250	3.52	1	Add
300 mm mm
	LPDOZ300H30	413130	300	4.17	1	Add
350 mm mm
	LPDOZ350H30	413135	350	4.46	1	Add
400 mm mm
	LPDOZ400H30	413140	400	4.74	1	Add
500 mm mm
	LPDOZ500H30	413150	500	5.32	1	Add
600 mm mm
	LPDOZ600H30	413160	600	5.90	1	Add
700 mm mm
	LPDOZ700H30	413170	700	6.47	1	Add
800 mm mm
	LPDOZ800H30	413180	800	7.05	1	Add
900 mm mm
	LPDOZ900H30	413190	900	7.62	1	Add
1000 mm mm
	LPDOZ1000H30	413101	1,000	8.20	1	Add
