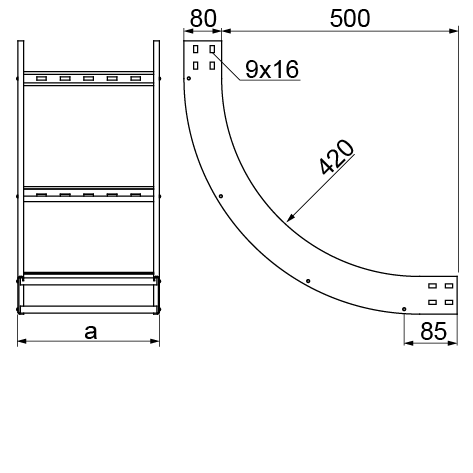

LPDWP...H80N 90° Vertical Bend - Internal

1.5
Information

Changing the direction of the cable route.

Material

S - Sendzimir method galvanised steel PN-EN 10346:2015-09

Available finishes:

F - hot dip galvanised steel PN-EN ISO 1461:2023-02

E - stainless steel

L - painting in standard RAL colour

Additional information

– use 4 LDPH... or LDCH... connectors and 32 sets of SGKM8x14 or SGM8x14 bolts for mounting

Product versions
Cable Management Solutions – BAKS Cable Management Solutions – BAKS
Symbol Width a (mm) Weight 1 pc. (kg) Catalogue number Quantity (pcs.)
Cable Management Solutions – BAKS
100 mm
Cable Management Solutions – BAKS
mm
LPDWP100H80N
Cable Management Solutions – BAKS
100
Cable Management Solutions – BAKS
2.40
Cable Management Solutions – BAKS
489210
Cable Management Solutions – BAKS
1
Add
Cable Management Solutions – BAKS
200 mm
Cable Management Solutions – BAKS
mm
LPDWP200H80N
Cable Management Solutions – BAKS
200
Cable Management Solutions – BAKS
2.76
Cable Management Solutions – BAKS
489220
Cable Management Solutions – BAKS
1
Add
Cable Management Solutions – BAKS
300 mm
Cable Management Solutions – BAKS
mm
LPDWP300H80N
Cable Management Solutions – BAKS
300
Cable Management Solutions – BAKS
3.16
Cable Management Solutions – BAKS
489230
Cable Management Solutions – BAKS
1
Add
Cable Management Solutions – BAKS
400 mm
Cable Management Solutions – BAKS
mm
LPDWP400H80N
Cable Management Solutions – BAKS
400
Cable Management Solutions – BAKS
3.52
Cable Management Solutions – BAKS
489240
Cable Management Solutions – BAKS
1
Add
Cable Management Solutions – BAKS
500 mm
Cable Management Solutions – BAKS
mm
LPDWP500H80N
Cable Management Solutions – BAKS
500
Cable Management Solutions – BAKS
3.92
Cable Management Solutions – BAKS
489250
Cable Management Solutions – BAKS
1
Add
Cable Management Solutions – BAKS
600 mm
Cable Management Solutions – BAKS
mm
LPDWP600H80N
Cable Management Solutions – BAKS
600
Cable Management Solutions – BAKS
4.32
Cable Management Solutions – BAKS
489260
Cable Management Solutions – BAKS
1
Add
