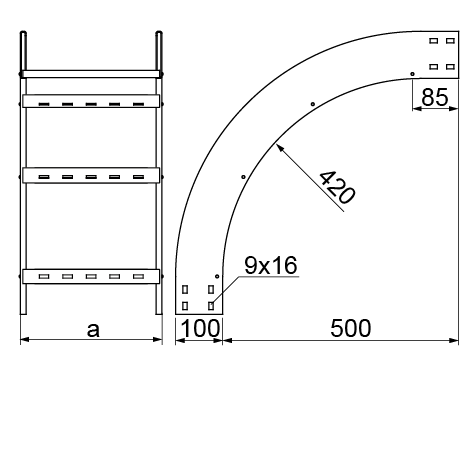

LPDZC...H100N 90° Vertical Bend - External

2.0
Information

Changing the direction of the cable route.

Material

S - Sendzimir method galvanised steel PN-EN 10346:2015-09

Available finishes:

F - hot dip galvanised steel PN-EN ISO 1461:2023-02

E - stainless steel

L - painting in standard RAL colour

Additional information

– use 4 LDPH... or LDCH... connectors and 32 sets of SGKM8x14 or SGM8x14 bolts for mounting

Product versions
Cable Management Solutions – BAKS Cable Management Solutions – BAKS
Symbol Width a (mm) Weight 1 pc. (kg) Catalogue number Quantity (pcs.)
Cable Management Solutions – BAKS
100 mm
Cable Management Solutions – BAKS
mm
LPDZC100H100N
Cable Management Solutions – BAKS
100
Cable Management Solutions – BAKS
3.82
Cable Management Solutions – BAKS
499111
Cable Management Solutions – BAKS
1
Add
Cable Management Solutions – BAKS
200 mm
Cable Management Solutions – BAKS
mm
LPDZC200H100N
Cable Management Solutions – BAKS
200
Cable Management Solutions – BAKS
4.18
Cable Management Solutions – BAKS
499121
Cable Management Solutions – BAKS
1
Add
Cable Management Solutions – BAKS
300 mm
Cable Management Solutions – BAKS
mm
LPDZC300H100N
Cable Management Solutions – BAKS
300
Cable Management Solutions – BAKS
4.58
Cable Management Solutions – BAKS
499131
Cable Management Solutions – BAKS
1
Add
Cable Management Solutions – BAKS
400 mm
Cable Management Solutions – BAKS
mm
LPDZC400H100N
Cable Management Solutions – BAKS
400
Cable Management Solutions – BAKS
4.94
Cable Management Solutions – BAKS
499141
Cable Management Solutions – BAKS
1
Add
Cable Management Solutions – BAKS
500 mm
Cable Management Solutions – BAKS
mm
LPDZC500H100N
Cable Management Solutions – BAKS
500
Cable Management Solutions – BAKS
5.34
Cable Management Solutions – BAKS
499151
Cable Management Solutions – BAKS
1
Add
Cable Management Solutions – BAKS
600 mm
Cable Management Solutions – BAKS
mm
LPDZC600H100N
Cable Management Solutions – BAKS
600
Cable Management Solutions – BAKS
5.74
Cable Management Solutions – BAKS
499161
Cable Management Solutions – BAKS
1
Add
