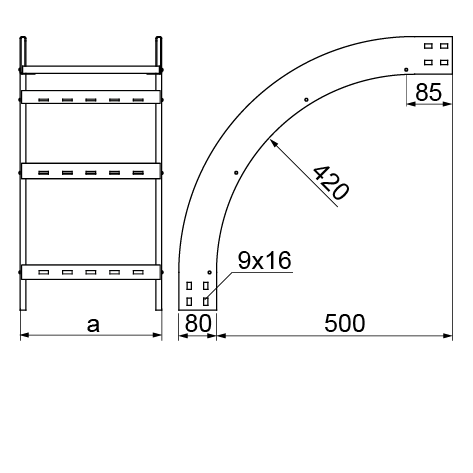

LPDZC...H80N 90° Vertical Bend - External

2.0
Information

Changing the direction of the cable route.

Material

S - Sendzimir method galvanised steel PN-EN 10346:2015-09

Available finishes:

F - hot dip galvanised steel PN-EN ISO 1461:2023-02

E - stainless steel

L - painting in standard RAL colour

Additional information

– use 4 LDPH... or LDCH... connectors and 32 sets of SGKM8x14 or SGM8x14 bolts for mounting

Product versions
Cable Management Solutions – BAKS Cable Management Solutions – BAKS
Symbol Width a (mm) Weight 1 pc. (kg) Catalogue number Quantity (pcs.)
Cable Management Solutions – BAKS
100 mm
Cable Management Solutions – BAKS
mm
LPDZC100H80N
Cable Management Solutions – BAKS
100
Cable Management Solutions – BAKS
3.10
Cable Management Solutions – BAKS
489110
Cable Management Solutions – BAKS
1
Add
Cable Management Solutions – BAKS
200 mm
Cable Management Solutions – BAKS
mm
LPDZC200H80N
Cable Management Solutions – BAKS
200
Cable Management Solutions – BAKS
3.46
Cable Management Solutions – BAKS
489120
Cable Management Solutions – BAKS
1
Add
Cable Management Solutions – BAKS
300 mm
Cable Management Solutions – BAKS
mm
LPDZC300H80N
Cable Management Solutions – BAKS
300
Cable Management Solutions – BAKS
3.86
Cable Management Solutions – BAKS
489130
Cable Management Solutions – BAKS
1
Add
Cable Management Solutions – BAKS
400 mm
Cable Management Solutions – BAKS
mm
LPDZC400H80N
Cable Management Solutions – BAKS
400
Cable Management Solutions – BAKS
4.22
Cable Management Solutions – BAKS
489140
Cable Management Solutions – BAKS
1
Add
Cable Management Solutions – BAKS
500 mm
Cable Management Solutions – BAKS
mm
LPDZC500H80N
Cable Management Solutions – BAKS
500
Cable Management Solutions – BAKS
4.62
Cable Management Solutions – BAKS
489150
Cable Management Solutions – BAKS
1
Add
Cable Management Solutions – BAKS
600 mm
Cable Management Solutions – BAKS
mm
LPDZC600H80N
Cable Management Solutions – BAKS
600
Cable Management Solutions – BAKS
5.02
Cable Management Solutions – BAKS
489160
Cable Management Solutions – BAKS
1
Add
