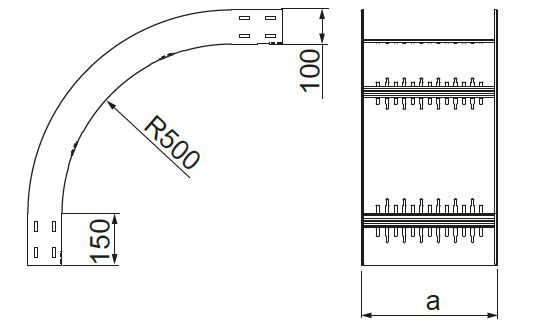

LZKSC...H100N 90° Vertical Bend - External

2.0
Information

Diversion in cable routing.

Material

S - Sendzimir method galvanised steel PN-EN 10346:2015-09

Available finishes:

F - hot dip galvanised steel PN-EN ISO 1461:2023-02

E - stainless steel

L - painting in standard RAL colour

Additional information

Capability of creating vertical bends of any internal radius
adjusted to minimum cable bending angle.
For joining fittings to cable tray use Straight Connectors
for Fittings LSSU...and Screw Sets SGKM8x16.

Product versions
Cable Management Solutions – BAKS Cable Management Solutions – BAKS
Add
Symbol Width a (mm) Weight 1 pc. (kg) Catalogue number Quantity (pcs.)
Cable Management Solutions – BAKS
200 mm
Cable Management Solutions – BAKS
mm
LZKSC200H100N
Cable Management Solutions – BAKS
200
Cable Management Solutions – BAKS
6.68
Cable Management Solutions – BAKS
221222
Cable Management Solutions – BAKS
1 		Add
Cable Management Solutions – BAKS
300 mm
Cable Management Solutions – BAKS
mm
LZKSC300H100N
Cable Management Solutions – BAKS
300
Cable Management Solutions – BAKS
7.64
Cable Management Solutions – BAKS
221232
Cable Management Solutions – BAKS
1 		Add
Cable Management Solutions – BAKS
400 mm
Cable Management Solutions – BAKS
mm
LZKSC400H100N
Cable Management Solutions – BAKS
400
Cable Management Solutions – BAKS
8.57
Cable Management Solutions – BAKS
221242
Cable Management Solutions – BAKS
1 		Add
Cable Management Solutions – BAKS
500 mm
Cable Management Solutions – BAKS
mm
LZKSC500H100N
Cable Management Solutions – BAKS
500
Cable Management Solutions – BAKS
9.62
Cable Management Solutions – BAKS
221252
Cable Management Solutions – BAKS
1 		Add
Cable Management Solutions – BAKS
600 mm
Cable Management Solutions – BAKS
mm
LZKSC600H100N
Cable Management Solutions – BAKS
600
Cable Management Solutions – BAKS
10.71
Cable Management Solutions – BAKS
221262
Cable Management Solutions – BAKS
1 		Add
