1.0

Information

Both sides of the trunking fixed to the substrate.

Material

S - Sendzimir method galvanised steel PN-EN 10346:2015-09

Available finishes:

E - stainless steel

Product versions

Add

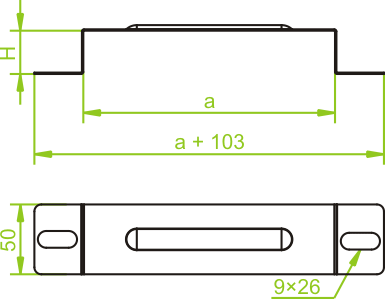

	Symbol	Width a (mm)	Height H (mm)	Weight 1 pc. (kg)	Catalogue number	Quantity (pcs.)
177 mm mm
	OK175H28	177	30	0.12	523017	50	Add
	OK175H38	177	40	0.13	533017	50	Add
177 mm mm
	OK175H48	177	50	0.14	543017	50	Add
192 mm mm
	OK190H28	192	30	0.13	523019	50	Add
	OK190H38	192	40	0.14	533019	50	Add
192 mm mm
	OK190H48	192	50	0.15	543019	50	Add
242 mm mm
	OK240H28	242	30	0.15	523024	50	Add
	OK240H38	242	40	0.16	533024	50	Add
242 mm mm
	OK240H48	242	50	0.17	543024	50	Add
252 mm mm
	OK250H28	252	30	0.16	543325	50	Add
	OK250H38	252	40	0.17	543425	50	Add
252 mm mm
	OK250H48	252	50	0.18	543225	50	Add
342 mm mm
	OK340H28	342	30	0.19	523034	50	Add
	OK340H38	342	40	0.20	533034	50	Add
342 mm mm
	OK340H48	342	50	0.21	543034	50	Add
352 mm mm
	OK350H28	352	30	0.20	544035	50	Add
	OK350H38	352	40	0.21	544135	50	Add
352 mm mm
	OK350H48	352	50	0.22	544235	50	Add
