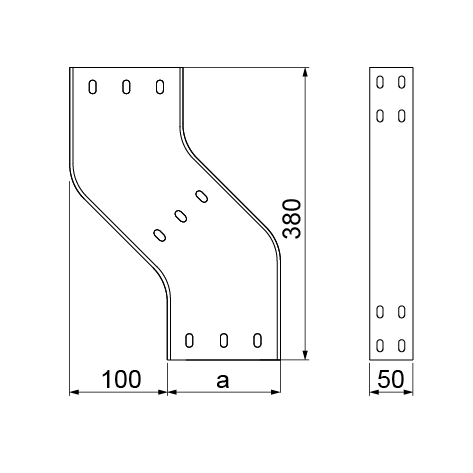

OPZLCH50 Horizontal Bypass - Left

2.0
Information

Bypassing an obstacle along the cable route.

Material

F - hot dip galvanised steel PN-EN ISO 1461:2023-02

Available finishes:

E - stainless steel

L - painting in standard RAL colour

Additional information

– to connect the fitting to the tray, use the LCC connector... or a set of LZC... connectors and SGKFM6x12 or SGFM6x12 bolts

Note
Note process of assembly requires additional couplers.
Product versions
Cable Management Solutions – BAKS Cable Management Solutions – BAKS
Add
Symbol Width a (mm) Weight 1 pc. (kg) Catalogue number Quantity (pcs.)
Cable Management Solutions – BAKS
50 mm
Cable Management Solutions – BAKS
mm
OPZLC50H50
Cable Management Solutions – BAKS
50
Cable Management Solutions – BAKS
0.78
Cable Management Solutions – BAKS
354805
Cable Management Solutions – BAKS
10 		Add
Cable Management Solutions – BAKS
100 mm
Cable Management Solutions – BAKS
mm
OPZLC100H50
Cable Management Solutions – BAKS
100
Cable Management Solutions – BAKS
1.03
Cable Management Solutions – BAKS
354810
Cable Management Solutions – BAKS
10 		Add
Cable Management Solutions – BAKS
200 mm
Cable Management Solutions – BAKS
mm
OPZLC200H50
Cable Management Solutions – BAKS
200
Cable Management Solutions – BAKS
1.50
Cable Management Solutions – BAKS
354820
Cable Management Solutions – BAKS
10 		Add
Cable Management Solutions – BAKS
300 mm
Cable Management Solutions – BAKS
mm
OPZLC300H50
Cable Management Solutions – BAKS
300
Cable Management Solutions – BAKS
1.97
Cable Management Solutions – BAKS
354830
Cable Management Solutions – BAKS
4 		Add
Cable Management Solutions – BAKS
400 mm
Cable Management Solutions – BAKS
mm
OPZLC400H50
Cable Management Solutions – BAKS
400
Cable Management Solutions – BAKS
2.44
Cable Management Solutions – BAKS
354840
Cable Management Solutions – BAKS
4 		Add
Cable Management Solutions – BAKS
500 mm
Cable Management Solutions – BAKS
mm
OPZLC500H50
Cable Management Solutions – BAKS
500
Cable Management Solutions – BAKS
2.91
Cable Management Solutions – BAKS
354850
Cable Management Solutions – BAKS
4 		Add
Cable Management Solutions – BAKS
600 mm
Cable Management Solutions – BAKS
mm
OPZLC600H50
Cable Management Solutions – BAKS
600
Cable Management Solutions – BAKS
3.37
Cable Management Solutions – BAKS
354860
Cable Management Solutions – BAKS
4 		Add
