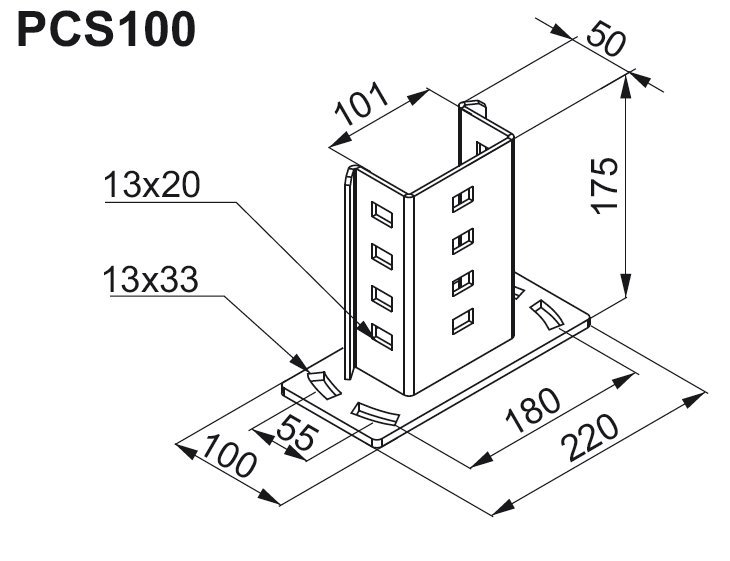

Assembly of vertical profile CWE100H50...
as a support post of the system
to GSW76x...N ground screw
Material
S235 steel, hot-dip galvanized acc. to
PN-EN ISO 1461:2011
Additional information
- increased strength due to specially shaped reinforcing folds
- holes in the base plate allowing adjustment of the position
during assembly
For assembly to:
- ground screw use 4 x SMM10x30F Screw Sets
