PCZKZP Cover For Horizontal Cross-over

1.5
Information

Protects cables from damage, UV rays and weather conditions. Airtight protection against the accumulation of
dust and dirt.
Protects cables from damage, UV rays and weather conditions. Airtight protection against the accumulation of dust and dirt.
Material

F - hot dip galvanised steel PN-EN ISO 1461:2023-02

Available finishes:

E - stainless steel

L - painting in standard RAL colour

Additional information

– in each cover there are process holes necessary for the hot-dip galvanising process.

– when ordering the cover itself, please specify the designation or part number of the fitting to which it is to fit

Product versions
Cable Management Solutions – BAKS Cable Management Solutions – BAKS

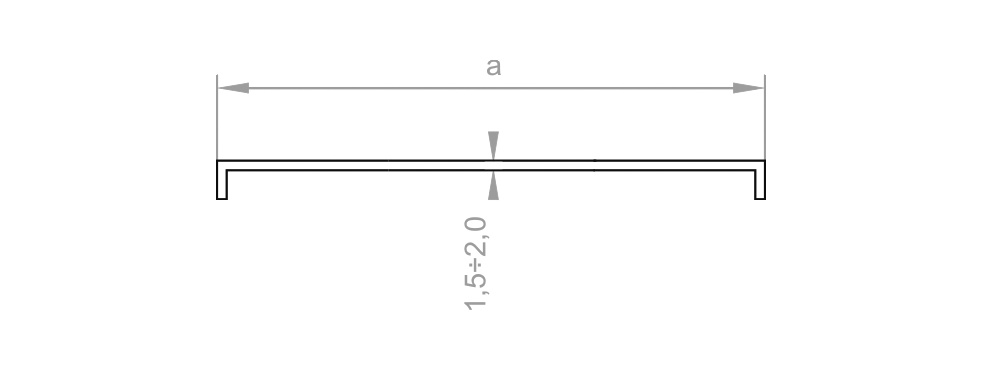

Symbol Width a (mm) Weight 1 pc. (kg) Catalogue number Quantity (pcs.)
Cable Management Solutions – BAKS
50 mm
Cable Management Solutions – BAKS
mm
PCZKZP50
Cable Management Solutions – BAKS
50
Cable Management Solutions – BAKS
0.82
Cable Management Solutions – BAKS
301505
Cable Management Solutions – BAKS
10
Add
Cable Management Solutions – BAKS
100 mm
Cable Management Solutions – BAKS
mm
PCZKZP100
Cable Management Solutions – BAKS
100
Cable Management Solutions – BAKS
1.34
Cable Management Solutions – BAKS
301510
Cable Management Solutions – BAKS
10
Add
Cable Management Solutions – BAKS
200 mm
Cable Management Solutions – BAKS
mm
PCZKZP200
Cable Management Solutions – BAKS
200
Cable Management Solutions – BAKS
2.16
Cable Management Solutions – BAKS
301520
Cable Management Solutions – BAKS
10
Add
Cable Management Solutions – BAKS
300 mm
Cable Management Solutions – BAKS
mm
PCZKZP300
Cable Management Solutions – BAKS
300
Cable Management Solutions – BAKS
3.04
Cable Management Solutions – BAKS
301530
Cable Management Solutions – BAKS
4
Add
Cable Management Solutions – BAKS
400 mm
Cable Management Solutions – BAKS
mm
PCZKZP400
Cable Management Solutions – BAKS
400
Cable Management Solutions – BAKS
3.98
Cable Management Solutions – BAKS
301540
Cable Management Solutions – BAKS
4
Add
Cable Management Solutions – BAKS
500 mm
Cable Management Solutions – BAKS
mm
PCZKZP500
Cable Management Solutions – BAKS
500
Cable Management Solutions – BAKS
4.99
Cable Management Solutions – BAKS
301550
Cable Management Solutions – BAKS
4
Add
Cable Management Solutions – BAKS
600 mm
Cable Management Solutions – BAKS
mm
PCZKZP600
Cable Management Solutions – BAKS
600
Cable Management Solutions – BAKS
6.06
Cable Management Solutions – BAKS
301560
Cable Management Solutions – BAKS
4
Add
