PDDP... Cover

Name: Baks Kazimierz Sielski
Address: Jagodne 5, Karczew, mazowieckie, 05-480
Telephone: 227108100

1.5

Information

Protection of cables from damage. Used in dusty areas.

Material

S - Sendzimir method galvanised steel PN-EN 10346:2015-09

Available finishes:

F - hot dip galvanised steel PN-EN ISO 1461:2023-02

E - stainless steel

L - painting in standard RAL colour

Additional information

– additional width adjustment thanks to a special profile, especially useful for hot dip galvanised elements

Product versions

Add

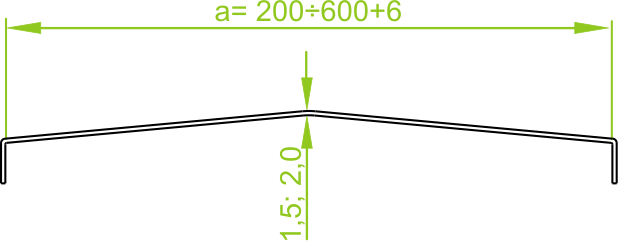

	Symbol	Catalogue number	Width a (mm)	Length L (mm)	Weight (1m) (kg)	Quantity in box (pcs. / m.)
200 mm mm
	PDDP200/3	402520	200	3 000 mm	2.71 kg	6 / 18 pcs. / m.	Add
300 mm mm
	PDDP300/3	402530	300	3 000 mm	3.95 kg	6 / 18 pcs. / m.	Add
400 mm mm
	PDDP400/3	402540	400	3 000 mm	5.19 kg	4 / 12 pcs. / m.	Add
500 mm mm
	PDDP500/3	402550	500	3 000 mm	6.42 kg	4 / 12 pcs. / m.	Add
600 mm mm
	PDDP600/3	402560	600	3 000 mm	7.66 kg	4 / 12 pcs. / m.	Add
