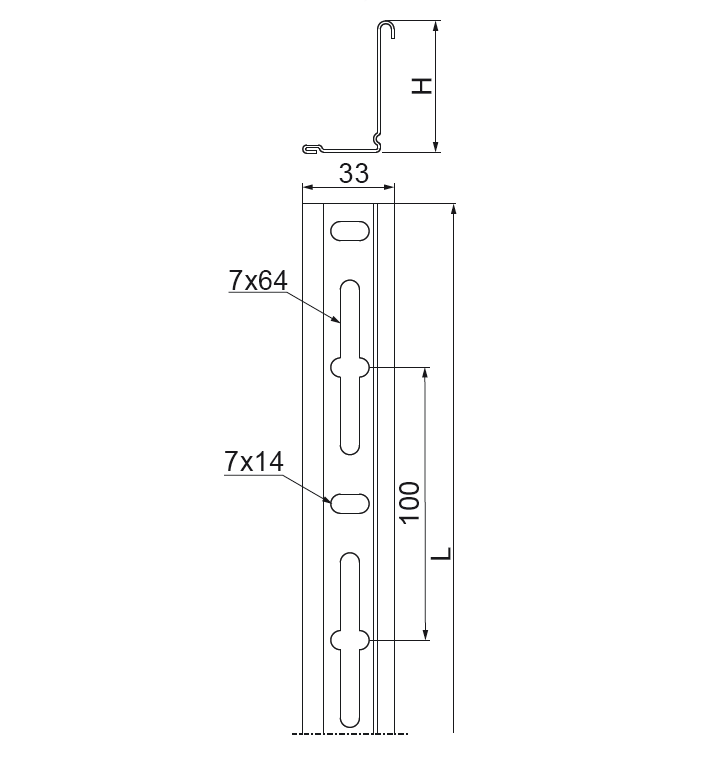

Lengthwise division of wire mesh cable trays
Material
S - Sendzimir method galvanised steel PN-EN 10346:2015-09
Available finishes:
F - hot dip galvanised steel PN-EN ISO 1461:2023-02
E - stainless steel
L - painting in standard RAL colour
Additional information
– selection of partitions for cable ladders: H45, H50 - PGR30/3N H60 - PGR40/3N, PGL40/3N H80 - PGL60/3N H100 - PGJ80/3N H120 - PGJ100/3N
– use SGKM6x16 bolts for mounting to the DK... ladder, SGKM6x22 bolts for DU... ladder
