PLZWMCH50 Cover For 45° Vertical Bend - Internal for H50

2.0
Information

Protects cables from damage, UV rays and weather conditions. Airtight protection against the accumulation of dust and dirt.

Material

F - hot dip galvanised steel PN-EN ISO 1461:2023-02

Available finishes:

E - stainless steel

L - painting in standard RAL colou

Additional information

– in each cover there are process holes necessary for the hot-dip galvanising process.

– when ordering the cover itself, please specify the designation or part number of the fitting to which it is to fit

Product versions
Cable Management Solutions – BAKS Cable Management Solutions – BAKS

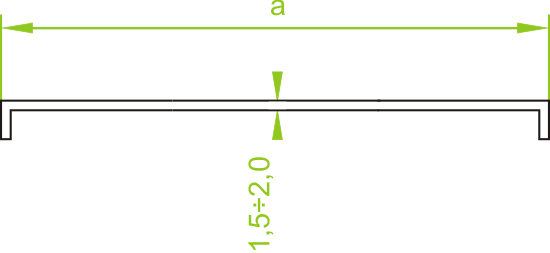

Symbol Width a (mm) Weight 1 pc. (kg) Catalogue number Quantity (pcs.)
Cable Management Solutions – BAKS
50 mm
Cable Management Solutions – BAKS
mm
PLZWMC50
Cable Management Solutions – BAKS
50
Cable Management Solutions – BAKS
0.20
Cable Management Solutions – BAKS
331005
Cable Management Solutions – BAKS
20
Add
Cable Management Solutions – BAKS
100 mm
Cable Management Solutions – BAKS
mm
PLZWMC100
Cable Management Solutions – BAKS
100
Cable Management Solutions – BAKS
0.36
Cable Management Solutions – BAKS
331010
Cable Management Solutions – BAKS
20
Add
Cable Management Solutions – BAKS
200 mm
Cable Management Solutions – BAKS
mm
PLZWMC200
Cable Management Solutions – BAKS
200
Cable Management Solutions – BAKS
0.69
Cable Management Solutions – BAKS
331020
Cable Management Solutions – BAKS
10
Add
Cable Management Solutions – BAKS
300 mm
Cable Management Solutions – BAKS
mm
PLZWMC300
Cable Management Solutions – BAKS
300
Cable Management Solutions – BAKS
1.02
Cable Management Solutions – BAKS
331030
Cable Management Solutions – BAKS
10
Add
Cable Management Solutions – BAKS
400 mm
Cable Management Solutions – BAKS
mm
PLZWMC400
Cable Management Solutions – BAKS
400
Cable Management Solutions – BAKS
1.36
Cable Management Solutions – BAKS
331040
Cable Management Solutions – BAKS
4
Add
Cable Management Solutions – BAKS
500 mm
Cable Management Solutions – BAKS
mm
PLZWMC500
Cable Management Solutions – BAKS
500
Cable Management Solutions – BAKS
1.69
Cable Management Solutions – BAKS
331050
Cable Management Solutions – BAKS
4
Add
Cable Management Solutions – BAKS
600 mm
Cable Management Solutions – BAKS
mm
PLZWMC600
Cable Management Solutions – BAKS
600
Cable Management Solutions – BAKS
2.02
Cable Management Solutions – BAKS
331060
Cable Management Solutions – BAKS
4
Add
