PLZZMCH50 Cover For 45° Vertical Bend - External H50

2.0
Information

Protects cables from damage, UV rays and weather conditions. Airtight protection against the accumulation of dust and dirt.

Material

F - hot dip galvanised steel PN-EN ISO 1461:2023-02

Available finishes:

E - stainless steel

L - painting in standard RAL colour

Additional information

– in each cover there are process holes necessary for the hot-dip galvanising process.

– when ordering the cover itself, please specify the designation or part number of the fitting to which it is to fit

Product versions
Cable Management Solutions – BAKS Cable Management Solutions – BAKS

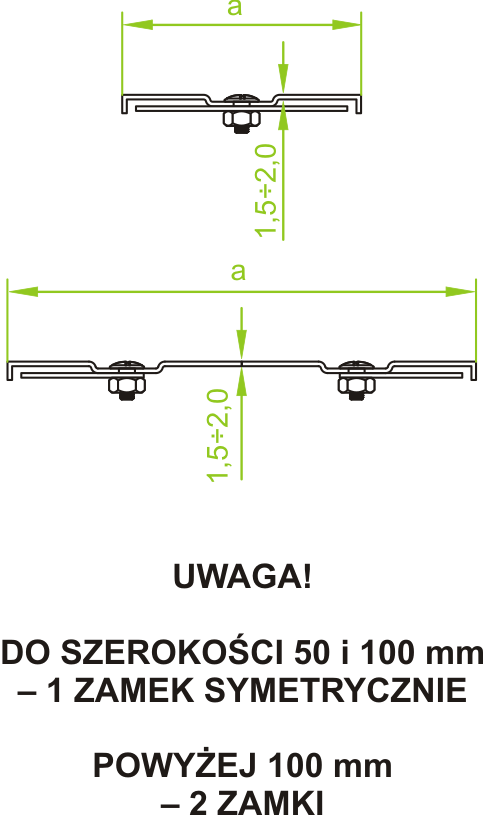

Symbol Width a (mm) Weight 1 pc. (kg) Catalogue number Quantity (pcs.)
Cable Management Solutions – BAKS
50 mm
Cable Management Solutions – BAKS
mm
PLZZMC50H50
Cable Management Solutions – BAKS
50
Cable Management Solutions – BAKS
0.24
Cable Management Solutions – BAKS
335605
Cable Management Solutions – BAKS
20
Add
Cable Management Solutions – BAKS
100 mm
Cable Management Solutions – BAKS
mm
PLZZMC100H50
Cable Management Solutions – BAKS
100
Cable Management Solutions – BAKS
0.44
Cable Management Solutions – BAKS
335610
Cable Management Solutions – BAKS
20
Add
Cable Management Solutions – BAKS
200 mm
Cable Management Solutions – BAKS
mm
PLZZMC200H50
Cable Management Solutions – BAKS
200
Cable Management Solutions – BAKS
0.82
Cable Management Solutions – BAKS
335620
Cable Management Solutions – BAKS
10
Add
Cable Management Solutions – BAKS
300 mm
Cable Management Solutions – BAKS
mm
PLZZMC300H50
Cable Management Solutions – BAKS
300
Cable Management Solutions – BAKS
1.60
Cable Management Solutions – BAKS
335630
Cable Management Solutions – BAKS
10
Add
Cable Management Solutions – BAKS
400 mm
Cable Management Solutions – BAKS
mm
PLZZMC400H50
Cable Management Solutions – BAKS
400
Cable Management Solutions – BAKS
2
Cable Management Solutions – BAKS
335640
Cable Management Solutions – BAKS
4
Add
Cable Management Solutions – BAKS
500 mm
Cable Management Solutions – BAKS
mm
PLZZMC500H50
Cable Management Solutions – BAKS
500
Cable Management Solutions – BAKS
2.39
Cable Management Solutions – BAKS
335650
Cable Management Solutions – BAKS
4
Add
Cable Management Solutions – BAKS
600 mm
Cable Management Solutions – BAKS
mm
PLZZMC600H50
Cable Management Solutions – BAKS
600
Cable Management Solutions – BAKS
2.53
Cable Management Solutions – BAKS
335660
Cable Management Solutions – BAKS
4
Add
