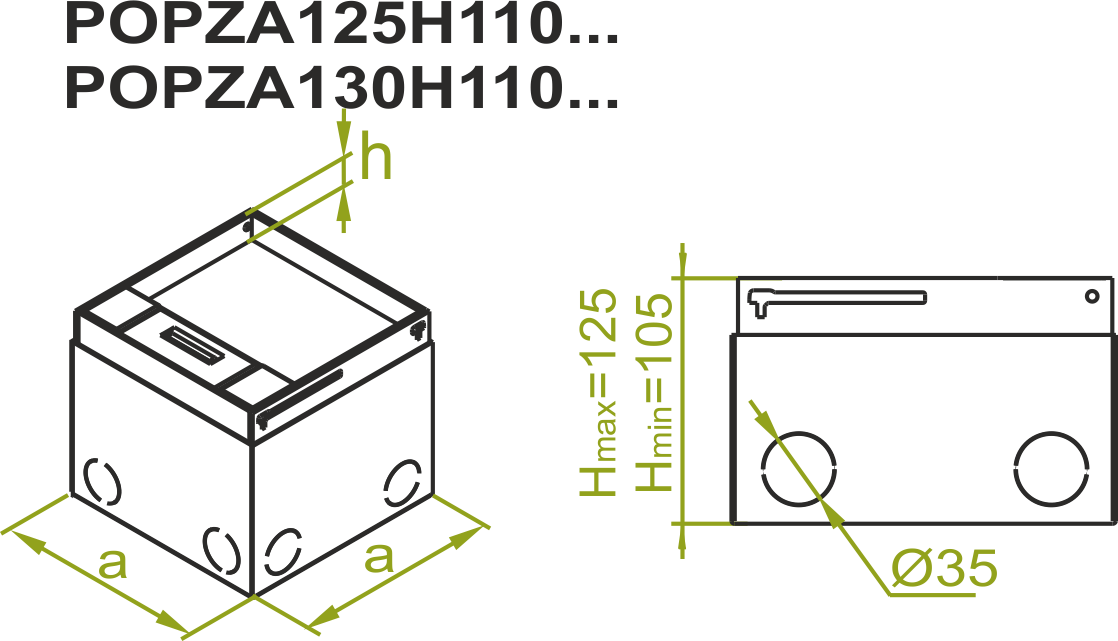

Complete floor box ready for mounting in engineered floors, raised floors and concrete screeds. The box with galvanised and aluminium components is ready for use in dry environments.
S - Sendzimir method galvanised steel PN-EN 10346:2015-09
AL - aluminium
– notched holes on each side of the metal casing are used, after breaking out, for trunking mounting.
– Ø8 mm holes in the bottom of the housing allow the box to be mounted to the substrate
– box ready for direct mounting electrical accessories Module 45
– depth of cover fill: W - Carpet, h = 5 mm G - Gres tile, h = 12 mm K - Stone, h = 23 mm
– universal cover allows mounting in carpet, gres tiles and stone
– quick and intuitive mounting box
– adjustable box height
– breakout holes for protective conduits
