Suspending cable routes. Benefits of using
angle adjustable head plate are smooth angle
adjustment or regulated with a screw.
Recommended is the use of channels:
CW...40H47, CW...40H40, CW...40H35,
CM...40H40, CM...40H30.
Steel, strip-galv. acc. to the Sendzimir
method to 10346:2015-09 (SG).
Available to order:
F- steel, zinc flake coated acc. to PN-EN ISO 10683:2014-09
E- stainless steel (SS), grade 1.4301 (AISI304)
L- powder coating in a full range of colours (PC)

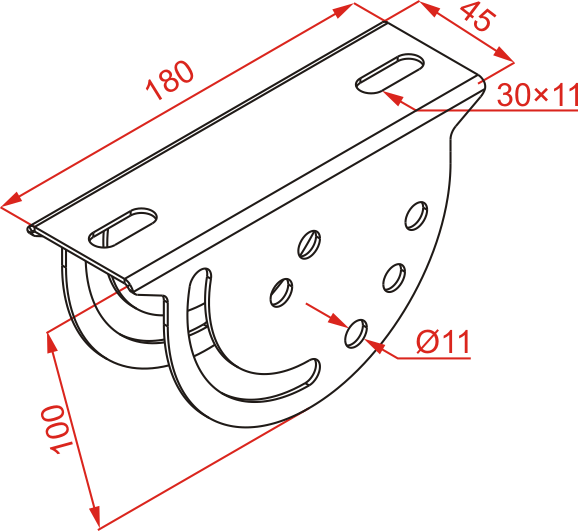

| Symbol | Length L (mm) | Width a (mm) | Weight 1 pc. (kg) | Catalogue number | Quantity (pcs.) | 3D file | ||
|---|---|---|---|---|---|---|---|---|
  |
||||||||
|
|
PSUN/PSUNO |
 |
|
 |
 |
 |
|
