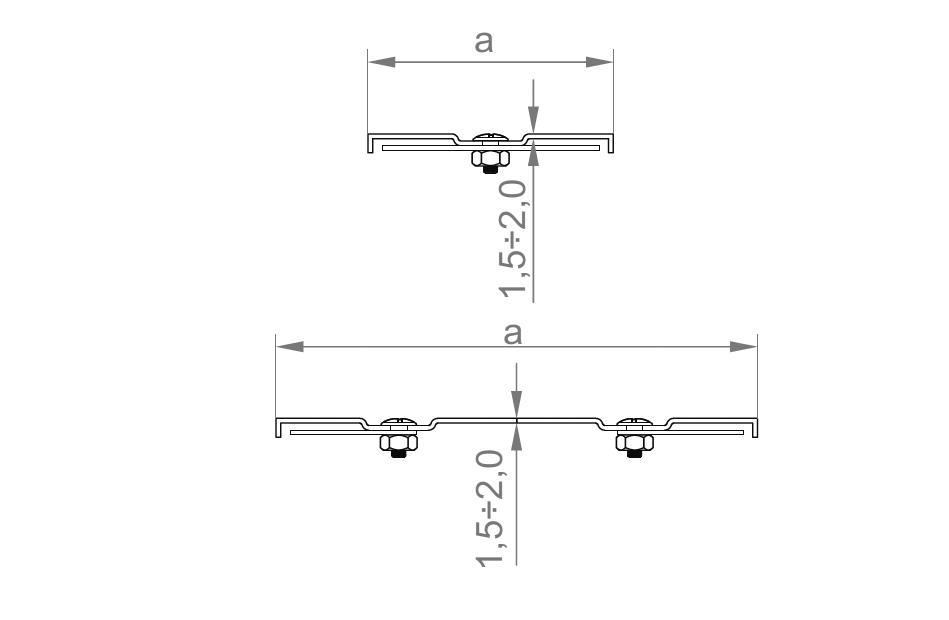

PZKZWP Cover with lock

1.5

Information

Protects cables from damage, UV rays and weather conditions. Airtight protection against the accumulation of dust and dirt.

Material

F - hot dip galvanised steel PN-EN ISO 1461:2023-02

Available finishes:

E - stainless steel

L - painting in standard RAL colou

Additional information

– in each cover there are process holes necessary for the hot-dip galvanising process.

– covers are suitable for KZW... and KZLW... trays

Product versions

Add

	Symbol	Length L (mm)	Width a (mm)	Catalogue number	Quantity in box (pcs. / m.)	Weight (1m) (kg)
100 mm mm
	PZKZWP100/3	3 000 mm	100	308610	10 / 30 pcs. / m.	1.48 kg	Add
200 mm mm
	PZKZWP200/3	3 000 mm	200	308620	6 / 18 pcs. / m.	2.71 kg	Add
300 mm mm
	PZKZWP300/3	3 000 mm	300	308630	6 / 18 pcs. / m.	3.95 kg	Add
400 mm mm
	PZKZWP400/3	3 000 mm	400	308640	4 / 12 pcs. / m.	5.19 kg	Add
500 mm mm
	PZKZWP500/3	3 000 mm	500	308650	4 / 12 pcs. / m.	6.42 kg	Add
600 mm mm
	PZKZWP600/3	3 000 mm	600	308660	4 / 12 pcs. / m.	7.66 kg	Add
