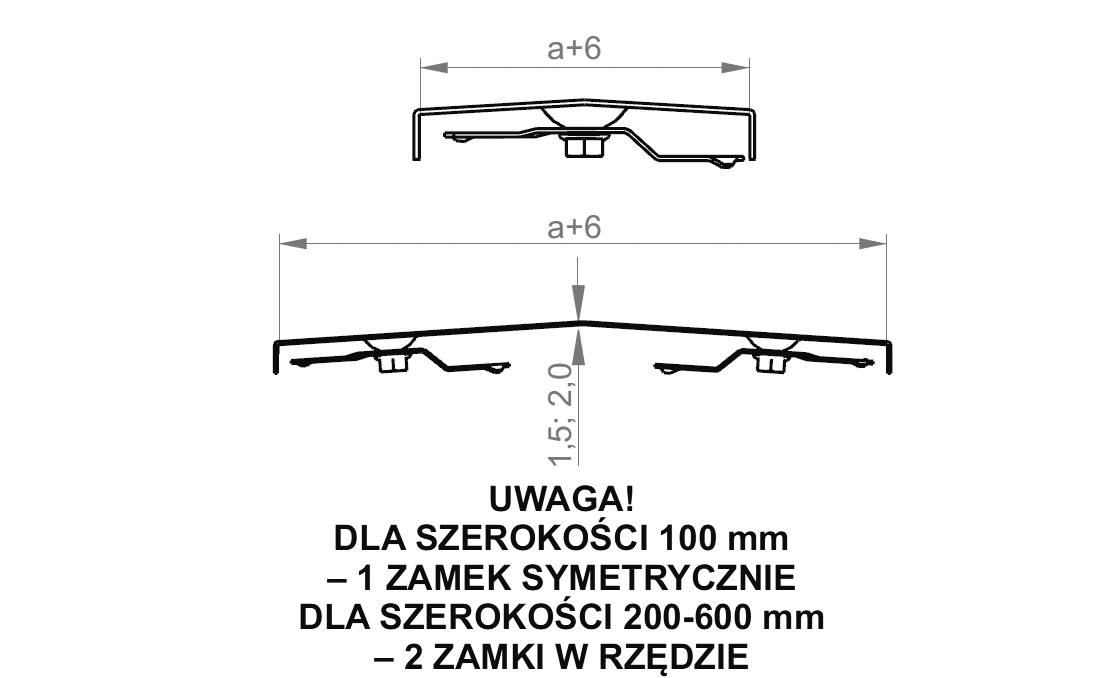

PZLPDZC... Cover for 90° Vertical Bend - External with Lock

2.0
Information

Protection of cables from damage. Use in dusty areas.

Material

S - Sendzimir method galvanised steel PN-EN 10346:2015-09

Available finishes:

F - hot dip galvanised steel PN-EN ISO 1461:2023-02

E - stainless steel

L - painting in standard RAL colour

Additional information

– when ordering the cover itself, please specify the designation or part number of the fitting to which it is to fit

Product versions
Cable Management Solutions – BAKS Cable Management Solutions – BAKS
Symbol Catalogue number Width a (mm) Weight 1 pc. (kg) Quantity (pcs.)
Cable Management Solutions – BAKS
100 mm
Cable Management Solutions – BAKS
mm
PZLPDZC100
Cable Management Solutions – BAKS
210101
Cable Management Solutions – BAKS
100
Cable Management Solutions – BAKS
1.73
Cable Management Solutions – BAKS
2
Add
Cable Management Solutions – BAKS
200 mm
Cable Management Solutions – BAKS
mm
PZLPDZC200
Cable Management Solutions – BAKS
210102
Cable Management Solutions – BAKS
200
Cable Management Solutions – BAKS
3.17
Cable Management Solutions – BAKS
2
Add
Cable Management Solutions – BAKS
300 mm
Cable Management Solutions – BAKS
mm
PZLPDZC300
Cable Management Solutions – BAKS
210103
Cable Management Solutions – BAKS
300
Cable Management Solutions – BAKS
4.61
Cable Management Solutions – BAKS
2
Add
Cable Management Solutions – BAKS
400 mm
Cable Management Solutions – BAKS
mm
PZLPDZC400
Cable Management Solutions – BAKS
210104
Cable Management Solutions – BAKS
400
Cable Management Solutions – BAKS
6.05
Cable Management Solutions – BAKS
2
Add
Cable Management Solutions – BAKS
500 mm
Cable Management Solutions – BAKS
mm
PZLPDZC500
Cable Management Solutions – BAKS
210105
Cable Management Solutions – BAKS
500
Cable Management Solutions – BAKS
7.49
Cable Management Solutions – BAKS
2
Add
Cable Management Solutions – BAKS
600 mm
Cable Management Solutions – BAKS
mm
PZLPDZC600
Cable Management Solutions – BAKS
210106
Cable Management Solutions – BAKS
600
Cable Management Solutions – BAKS
8.93
Cable Management Solutions – BAKS
2
Add
