RDPC...H100N Right Reducer

2.0
Information

Changing the width of the cable route.

Material

S - Sendzimir method galvanised steel PN-EN 10346:2015-09

Available finishes:

F - hot dip galvanised steel PN-EN ISO 1461:2023-02

E - stainless steel

L - painting in standard RAL colour

Additional information

– use 4 LDPH... or LDCH... connectors and 32 sets of SGKM8x14 or SGM8x14 bolts for mounting

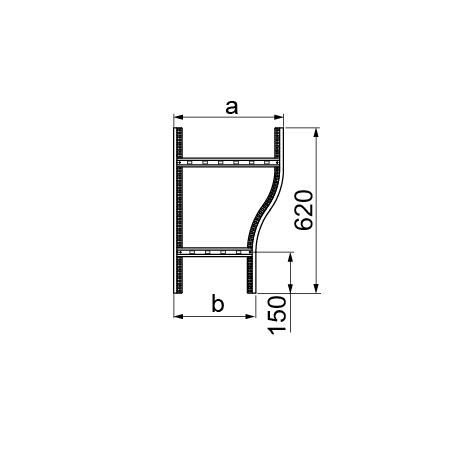

– for non-standard orders specify dimension a and b

Product versions
Cable Management Solutions – BAKS Cable Management Solutions – BAKS
Symbol Width a (mm) Szerokość b (mm) Weight 1 pc. (kg) Catalogue number Quantity (pcs.) 3D file
Cable Management Solutions – BAKS
200 mm
Cable Management Solutions – BAKS
mm
RDPC200/100H100N
Cable Management Solutions – BAKS
200
Cable Management Solutions – BAKS
100
Cable Management Solutions – BAKS
2.81
Cable Management Solutions – BAKS
493620
Cable Management Solutions – BAKS
1
Plik *.std Add
Cable Management Solutions – BAKS
300 mm
Cable Management Solutions – BAKS
mm
RDPC300/200H100N
Cable Management Solutions – BAKS
300
Cable Management Solutions – BAKS
200
Cable Management Solutions – BAKS
3.04
Cable Management Solutions – BAKS
493630
Cable Management Solutions – BAKS
1
Plik *.std Add
Cable Management Solutions – BAKS
400 mm
Cable Management Solutions – BAKS
mm
RDPC400/300H100N
Cable Management Solutions – BAKS
400
Cable Management Solutions – BAKS
300
Cable Management Solutions – BAKS
3.28
Cable Management Solutions – BAKS
493640
Cable Management Solutions – BAKS
1
Plik *.std Add
Cable Management Solutions – BAKS
500 mm
Cable Management Solutions – BAKS
mm
RDPC500/400H100N
Cable Management Solutions – BAKS
500
Cable Management Solutions – BAKS
400
Cable Management Solutions – BAKS
3.52
Cable Management Solutions – BAKS
493650
Cable Management Solutions – BAKS
1
Plik *.std Add
Cable Management Solutions – BAKS
600 mm
Cable Management Solutions – BAKS
mm
RDPC600/500H100N
Cable Management Solutions – BAKS
600
Cable Management Solutions – BAKS
500
Cable Management Solutions – BAKS
3.73
Cable Management Solutions – BAKS
493660
Cable Management Solutions – BAKS
1
Plik *.std Add
