RDSC...H120N Straight Reducer

2.0
Information

Changing the width of the cable route.

Material

S - Sendzimir method galvanised steel PN-EN 10346:2015-09

Available finishes:

F - hot dip galvanised steel PN-EN ISO 1461:2023-02

E - stainless steel

L - painting in standard RAL colour

Additional information

– use 4 LDPH... or LDCH... connectors and 32 sets of SGKM8x14 or SGM8x14 bolts for mounting

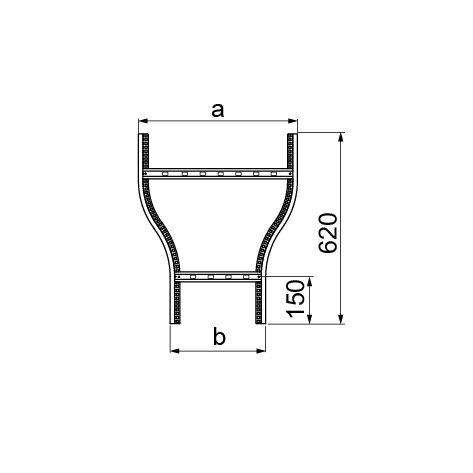

– for non-standard orders specify dimension a and b

Product versions
Cable Management Solutions – BAKS Cable Management Solutions – BAKS
No product version selected
Add
Symbol Width a (mm) Szerokość b (mm) Weight 1 pc. (kg) Catalogue number Quantity (pcs.) 3D file
Cable Management Solutions – BAKS
200 mm
Cable Management Solutions – BAKS
mm
RDSC200/100H120N
Cable Management Solutions – BAKS
200
Cable Management Solutions – BAKS
100
Cable Management Solutions – BAKS
3.25
Cable Management Solutions – BAKS
485120
Cable Management Solutions – BAKS
1 		Plik *.std Add
Cable Management Solutions – BAKS
300 mm
Cable Management Solutions – BAKS
mm
RDSC300/200H120N
Cable Management Solutions – BAKS
300
Cable Management Solutions – BAKS
200
Cable Management Solutions – BAKS
3.48
Cable Management Solutions – BAKS
485130
Cable Management Solutions – BAKS
1 		Plik *.std Add
Cable Management Solutions – BAKS
400 mm
Cable Management Solutions – BAKS
mm
RDSC400/300H120N
Cable Management Solutions – BAKS
400
Cable Management Solutions – BAKS
300
Cable Management Solutions – BAKS
3.72
Cable Management Solutions – BAKS
485140
Cable Management Solutions – BAKS
1 		Plik *.std Add
Cable Management Solutions – BAKS
500 mm
Cable Management Solutions – BAKS
mm
RDSC500/400H120N
Cable Management Solutions – BAKS
500
Cable Management Solutions – BAKS
400
Cable Management Solutions – BAKS
3.96
Cable Management Solutions – BAKS
485150
Cable Management Solutions – BAKS
1 		Plik *.std Add
Cable Management Solutions – BAKS
600 mm
Cable Management Solutions – BAKS
mm
RDSC600/500H120N
Cable Management Solutions – BAKS
600
Cable Management Solutions – BAKS
500
Cable Management Solutions – BAKS
4.17
Cable Management Solutions – BAKS
485160
Cable Management Solutions – BAKS
1 		Plik *.std Add
