RDSP...H50N Straight Reducer

1.5
Information

Reducing/extending widths of cable runs

Material

Steel, strip-galv. acc. to the Sendzimir
method to PN-EN 10346:2015-09 (SG)
Available finishes:
F - steel, hot-dip galv.
to PN-EN ISO 1461:2011 (HDG)
E - stainless steel (SS), grade 1.4301 (AISI304)
L - powder coating in a full range of colours (PC)

Additional information

For the assembly use 4 Straight Connector LDCH...
and 16 sets of Screw SGKM8x14 or SGM8x14

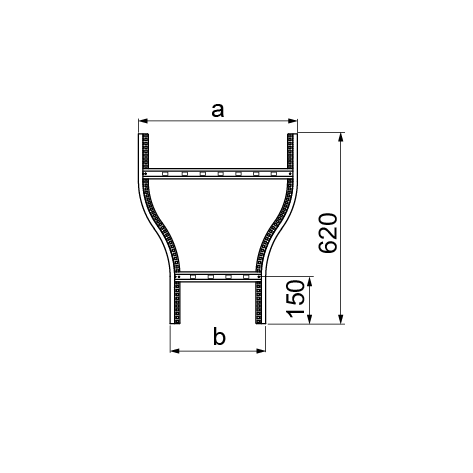

In case of special orders specify dimensions a and b.

Product versions
Cable Management Solutions – BAKS Cable Management Solutions – BAKS
Symbol Width a (mm) Size b (mm) Weight 1 pc. (kg) Catalogue number Quantity (pcs.)
Cable Management Solutions – BAKS
200 mm
Cable Management Solutions – BAKS
mm
RDSP200/100H50N
Cable Management Solutions – BAKS
200
Cable Management Solutions – BAKS
100
Cable Management Solutions – BAKS
1.47
Cable Management Solutions – BAKS
457820
Cable Management Solutions – BAKS
2
Add
Cable Management Solutions – BAKS
300 mm
Cable Management Solutions – BAKS
mm
RDSP300/200H50N
Cable Management Solutions – BAKS
300
Cable Management Solutions – BAKS
200
Cable Management Solutions – BAKS
1.63
Cable Management Solutions – BAKS
457830
Cable Management Solutions – BAKS
2
Add
Cable Management Solutions – BAKS
400 mm
Cable Management Solutions – BAKS
mm
RDSP400/300H50N
Cable Management Solutions – BAKS
400
Cable Management Solutions – BAKS
300
Cable Management Solutions – BAKS
1.81
Cable Management Solutions – BAKS
457840
Cable Management Solutions – BAKS
2
Add
Cable Management Solutions – BAKS
500 mm
Cable Management Solutions – BAKS
mm
RDSP500/400H50N
Cable Management Solutions – BAKS
500
Cable Management Solutions – BAKS
400
Cable Management Solutions – BAKS
1.99
Cable Management Solutions – BAKS
457850
Cable Management Solutions – BAKS
2
Add
Cable Management Solutions – BAKS
600 mm
Cable Management Solutions – BAKS
mm
RDSP600/500H50N
Cable Management Solutions – BAKS
600
Cable Management Solutions – BAKS
500
Cable Management Solutions – BAKS
2.15
Cable Management Solutions – BAKS
457860
Cable Management Solutions – BAKS
2
Add
