RKPH50 Angle Reducer

2.0
Information

Cable route width reducer.

Material

F - hot dip galvanised steel PN-EN ISO 1461:2023-02

Available finishes:

E - stainless steel

L - painting in standard RAL colour

Additional information

– use SGKFM6x12 or SGFM6x12 bolts for mounting

– by selecting the appropriate element, we can reduce the width of the tray by 50, 100 or 200 mm

– for example, when mounting RKP100H50 reducer to the KZP400H50 tray, we change it to KZP300H50 tray

Product versions
Cable Management Solutions – BAKS Cable Management Solutions – BAKS
Add

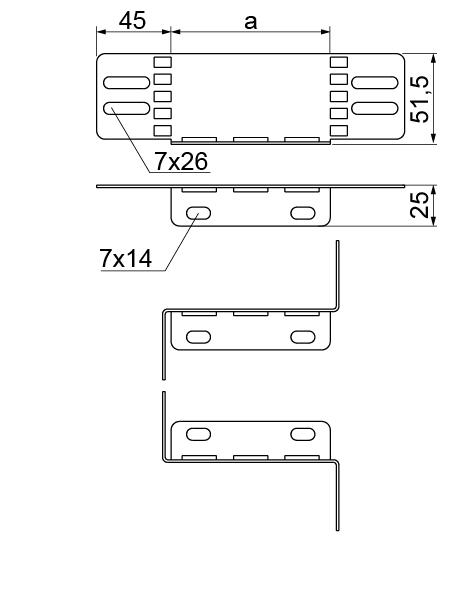

Symbol Width a (mm) Weight 1 pc. (kg) Catalogue number Quantity (pcs.)
Cable Management Solutions – BAKS
50 mm
Cable Management Solutions – BAKS
mm
RKP50H50
Cable Management Solutions – BAKS
50
Cable Management Solutions – BAKS
0.08
Cable Management Solutions – BAKS
350005
Cable Management Solutions – BAKS
10 		Add
Cable Management Solutions – BAKS
100 mm
Cable Management Solutions – BAKS
mm
RKP100H50
Cable Management Solutions – BAKS
100
Cable Management Solutions – BAKS
0.12
Cable Management Solutions – BAKS
350010
Cable Management Solutions – BAKS
10 		Add
Cable Management Solutions – BAKS
200 mm
Cable Management Solutions – BAKS
mm
RKP200H50
Cable Management Solutions – BAKS
200
Cable Management Solutions – BAKS
0.21
Cable Management Solutions – BAKS
350020
Cable Management Solutions – BAKS
10 		Add
Examples
