Fixing PV panels to trapezoidal metal sheet,
e.g. DS-V6bN system
Material
Aluminium (EN AW-6063)
Available finishes:
L- powder coating RAL9005
Additional information
Note:
The rail is not equipped with sealing rubber.
Using EPDMW2x40 Cellular Rubber is recommended.
Advantages:

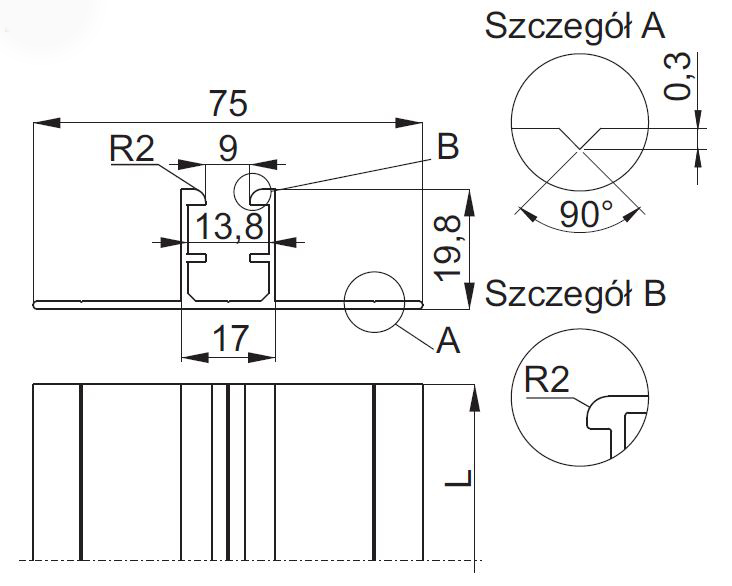

- special groove (detail A in the picture) allows easy positioning
of the screws when screwing in
- low height to allow for aesthetic Installation of the panels close
to the roof surface
For the assembly use min. 4 x SMDP6,0x25E Screws
