Installation to a flat roof covered with roofing felt
or membrane
Material
S350GD steel in:
Magnelis®, MagiZinc®, PosMAC coating
Additional information
- non-invasive Installation to roofs covered with roofing felt or
membrane
- geometry and load capacity adapted to the BAKS systems
- low weight, which does not overload the roof
- the set includes 2 enlarged washers, 2 spring washers
and 2 stainless steel nuts

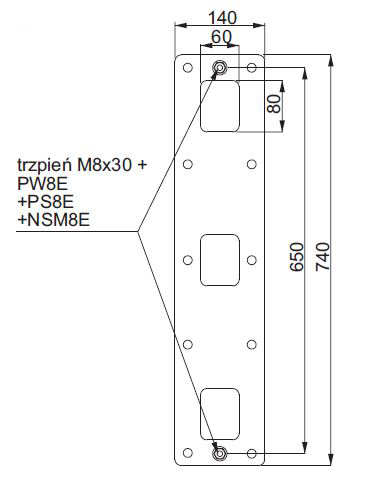

- threaded mandrel M8x30 permanently fixed to the plate
Attention.
Minimum patch size for SPM2 fixing plates:
- for roofing felt: 500 x 1200 mm
- membrane: 300 x 1000 mm
Note:
Installation instructions of the plate for flat roof can be found
on the website www.baks.com.pl/en/
