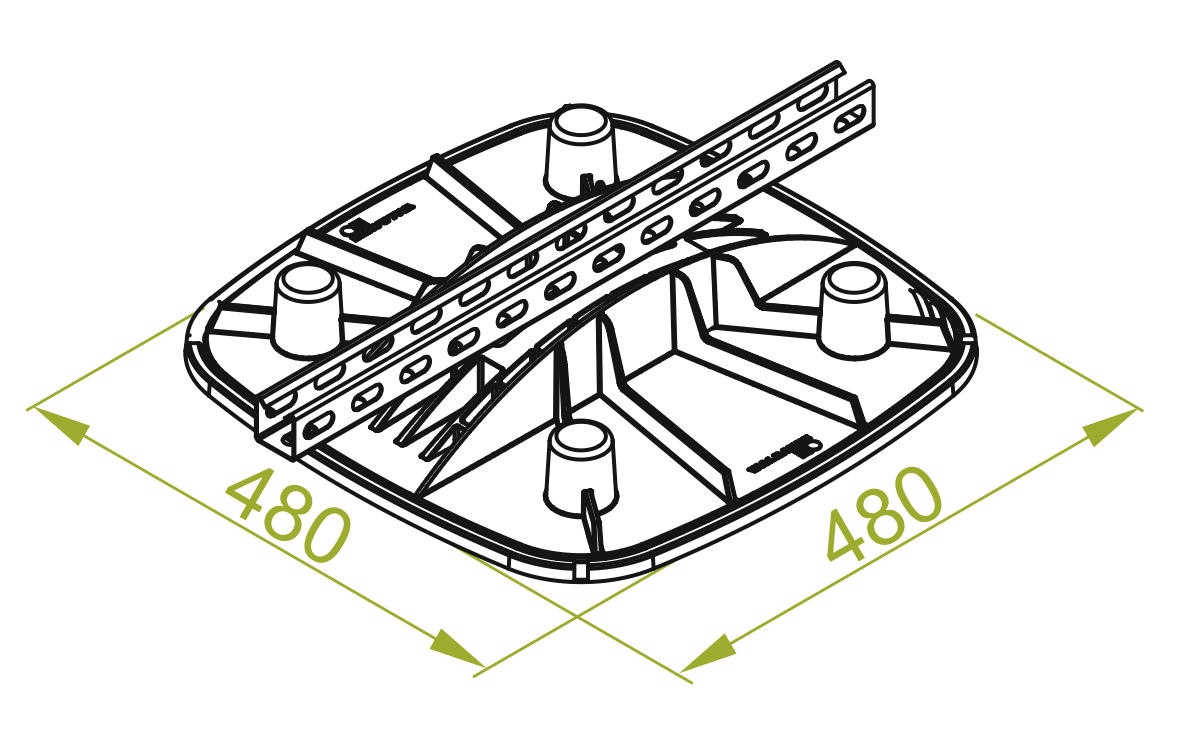

ST480H Support for Rooftop Installations

0.0 Cable Management Solutions – BAKS Cable Management Solutions – BAKS Cable Management Solutions – BAKS Cable Management Solutions – BAKS
Information

Modular support system for setting up cable routes, air conditioning equipment, pipes, chillers, walkways, solar panels, photovoltaic panels, etc. on roofs. Mounting on flat and slightly sloping roofs. The system is suitable for 40H40 or 41H41 support channels.

Material

WPC - composite of plastic and wood fibres

Additional information

– mounting of load-bearing structures on roofs covered with roofing felt, without interfering with the protective coating of the roof

– stepless adjustment of the support angle up to 7°

– adapter for rotating the 40H40 mm and 41H41 mm channel in the support by 360° (vertical arrangement)

– non-slip insulating mat for even load distribution

– UV and chemical resistant components



Product versions
Cable Management Solutions – BAKS Cable Management Solutions – BAKS
Symbol Maximum load Fmax(kN) Weight 1 pc. (kg) Catalogue number Quantity (pcs.)
ST480H
Cable Management Solutions – BAKS
2.50
Cable Management Solutions – BAKS
4
Cable Management Solutions – BAKS
628020
Cable Management Solutions – BAKS
1
Add
