TDC...H120N Horizontal Tee

2.0
Information

Cable route branching.

Material

S - Sendzimir method galvanised steel PN-EN 10346:2015-09

Available finishes:

F - hot dip galvanised steel PN-EN ISO 1461:2023-02

E - stainless steel

L - painting in standard RAL colour

Additional information

– use 6 LDCH... connectors and 48 sets of SGKM8x14 or SGM8x14 bolts for mounting

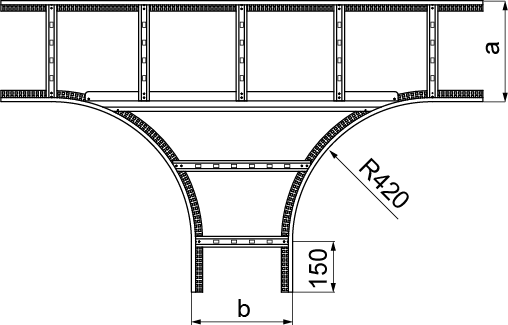

– for non-standard orders specify dimension a and b (if a=400, b=600 the ordered fitting should have the designation TD...400/600/400H...)

Product versions
Cable Management Solutions – BAKS Cable Management Solutions – BAKS
Add
Symbol Szerokość a=b (mm) Weight 1 pc. (kg) Catalogue number Quantity (pcs.) 3D file
TDC100H120N
Cable Management Solutions – BAKS
100
Cable Management Solutions – BAKS
8.98
Cable Management Solutions – BAKS
484110
Cable Management Solutions – BAKS
1 		Plik *.std Add
TDC200H120N
Cable Management Solutions – BAKS
200
Cable Management Solutions – BAKS
10.02
Cable Management Solutions – BAKS
484120
Cable Management Solutions – BAKS
1 		Plik *.std Add
TDC300H120N
Cable Management Solutions – BAKS
300
Cable Management Solutions – BAKS
11.09
Cable Management Solutions – BAKS
484130
Cable Management Solutions – BAKS
1 		Plik *.std Add
TDC400H120N
Cable Management Solutions – BAKS
400
Cable Management Solutions – BAKS
12.18
Cable Management Solutions – BAKS
484140
Cable Management Solutions – BAKS
1 		Plik *.std Add
TDC500H120N
Cable Management Solutions – BAKS
500
Cable Management Solutions – BAKS
13.24
Cable Management Solutions – BAKS
484150
Cable Management Solutions – BAKS
1 		Plik *.std Add
TDC600H120N
Cable Management Solutions – BAKS
600
Cable Management Solutions – BAKS
14.31
Cable Management Solutions – BAKS
484160
Cable Management Solutions – BAKS
1 		Plik *.std Add
