Cable route branching
Material
S - Sendzimir method galvanised steel PN-EN 10346:2015-09
Available finishes:
F - hot dip galvanised steel PN-EN ISO 1461:2023-02
E - stainless steel
L - painting in standard RAL colour
Additional information
– for large orders, it is possible to make fittings of any radius
– to connect the fitting to the ladder it is necessary to use LSSU... fitting connectors and SGKM8x16 bolts

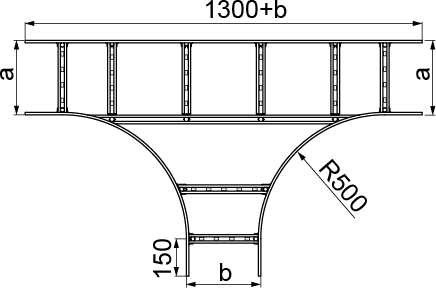

– for non-standard orders specify dimension a and b (if a=400, b=600 the ordered fitting should have the
designation TDSC400/600/400H...)
