Cable route branching.
Material
MC - steel in Mangelis® coating
Additional information
– mounting with SGKFM6x12 bolts

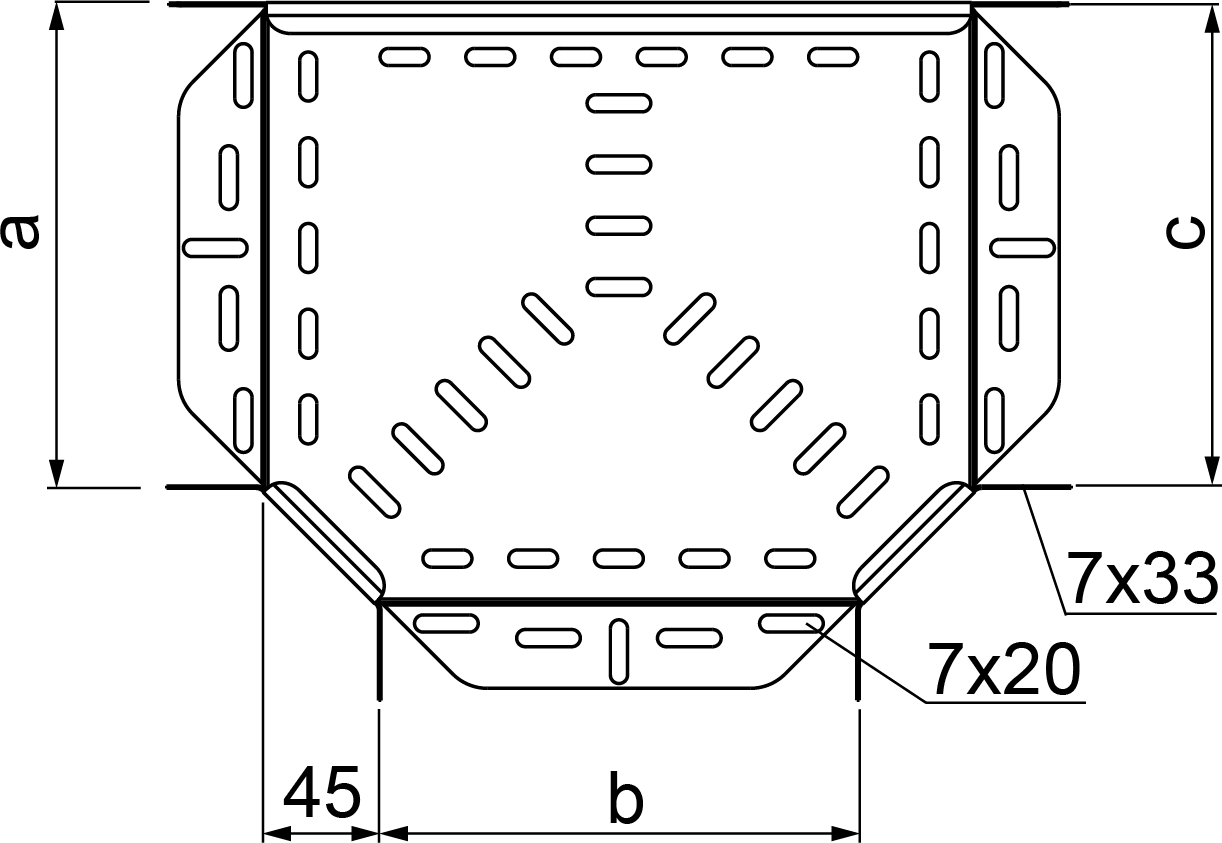

– for non-standard orders specify dimension a, b and c (if a=100 mm, b=300 mm and c=200 mm the ordered fitting should have the designation TK...100/300/200H...)
– Magnelis-coating system can be supplemented with hot-dip zinc or stainless steel products
– 400-600 mm wide fittings can be made from 1 mm thick sheet metal
Note
Integrated couplers. Assembly without additional couplers.
Integrated couplers. Assembly without additional couplers.
