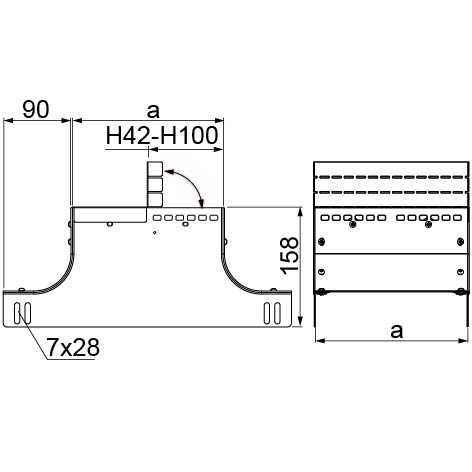

Cable route branching.
Material
S - Sendzimir method galvanised steel PN-EN 10346:2015-09
Available finishes:
F - hot dip galvanised steel PN-EN ISO 1461:2023-02
E - stainless steel
L - painting in standard RAL colour
Additional information
– mounting with SGKM6x12 or SGM6x12 bolts
– mounting by placing on the tray from the top or bottom (after cutting out the bottom first)
– Fits trays with a height of H42- H100
– possibility to leave the tray in four positions
– on request can be made in other widths (150, 400, 500 and 600 mm)
możliwość odejścia korytkiem w czterech położeniach
– na zamówienie możliwość wykonania w pozostałych szerokościach (150, 400, 500 i 600mm)
