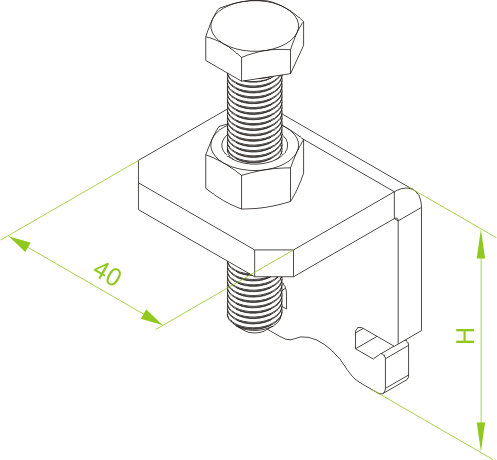

UCW... Beam Clamp

0.0
Information

Suspending cable routes.

Material

FP - galvanised according to the zinc flake method PN-EN ISO 10683:2018-11

Available finishes:

E - stainless steel

L - painting in standard RAL colour

Additional information

– UCW1 and UCW2 fit into channels: CW...40H22, CW...40H35, CW...40H40

Product versions
Cable Management Solutions – BAKS Cable Management Solutions – BAKS
Add
Symbol Catalogue number Height H (mm) Maximum load Fmax(kN) Sheet thickness (mm) Weight 1 pc. (kg) Quantity (pcs.)
UCW1
Cable Management Solutions – BAKS
752408
Cable Management Solutions – BAKS
46
Cable Management Solutions – BAKS
2
Cable Management Solutions – BAKS
6
Cable Management Solutions – BAKS
0.18
Cable Management Solutions – BAKS
30 		Add
UCW2
Cable Management Solutions – BAKS
752409
Cable Management Solutions – BAKS
50
Cable Management Solutions – BAKS
2.50
Cable Management Solutions – BAKS
8
Cable Management Solutions – BAKS
0.22
Cable Management Solutions – BAKS
30 		Add
Examples
Cable Management Solutions – BAKS Cable Management Solutions – BAKS
