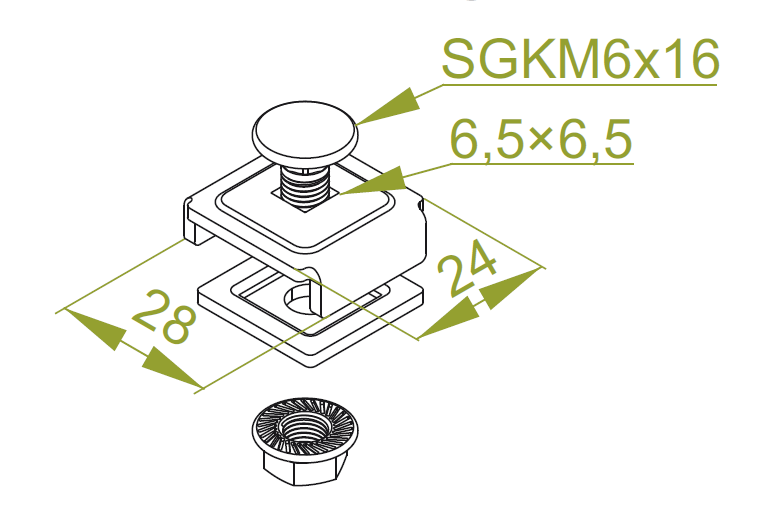

Joining system components of Wire Mesh
Cable Trays
Material
G - galvanised
Available finishes:
FP - galvanised according to the zinc flake method PN-EN ISO 10683:2018-11
E - stainless steel
L - painting in standard RAL colour
Additional information
Joint connector for cable tray side heights:H35, H60, H110.
At side height H35 for width : 35÷50 use 2x USSN/USSO,
100 - 3x USSN/USSO, 200 ÷ 300 - 4x USSN/USSO.
At side height H60 for width: 60 use 2x USSN/USSO,
100 - 3x USSN/USSO, 200÷400 - use 4x USSN/USSO, 500÷600 - 5x USSN/USSO
At side height H110 for width 100 use 3x USSN/USSO,
200÷400 - 4x USSN/USSO, 500÷600 - 5x USSN/USSO.
