USW... Rod Hanger

0.0
Information

Suspending cable routes.

Material

S - Sendzimir method galvanised steel PN-EN 10346:2015-09

Available finishes:

FP - galvanised according to the zinc flake method PN-EN ISO 10683:2018-11

E - stainless steel

L - painting in standard RAL colour

Product versions
Cable Management Solutions – BAKS Cable Management Solutions – BAKS
Add

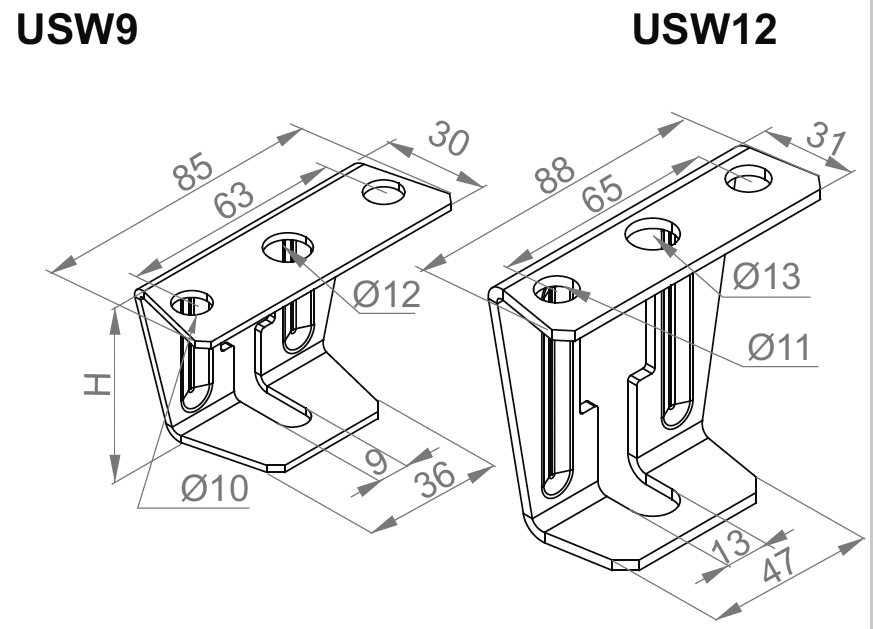

Symbol Catalogue number Height H (mm) Sheet thickness (mm) Weight 1 pc. (kg) Maximum load Fmax(kN) Quantity (pcs.) 3D file
USW9
Cable Management Solutions – BAKS
750808
Cable Management Solutions – BAKS
50
Cable Management Solutions – BAKS
2
Cable Management Solutions – BAKS
0.12
Cable Management Solutions – BAKS
2.20
Cable Management Solutions – BAKS
50 		Plik *.std Add
USW12
Cable Management Solutions – BAKS
750608
Cable Management Solutions – BAKS
80
Cable Management Solutions – BAKS
3
Cable Management Solutions – BAKS
0.16
Cable Management Solutions – BAKS
2
Cable Management Solutions – BAKS
50 		Plik *.std Add
Examples
Cable Management Solutions – BAKS Cable Management Solutions – BAKS
