WS... Bracket

0.0
Information

Mounting trays, trays mesh, cable ladders, pipes and other elements.

Material

S - Sendzimir method galvanised steel PN-EN 10346:2015-09

Available finishes:

E - stainless steel

L - painting in standard RAL colour

Additional information

– on request possible to make wall brackets of non-standard lengths

– screwless mounting to BAKS brackets and C..., CW... channel structures. and CM... with holes of width 11-13 and length min. 24 mm

Product versions
Cable Management Solutions – BAKS Cable Management Solutions – BAKS
Add

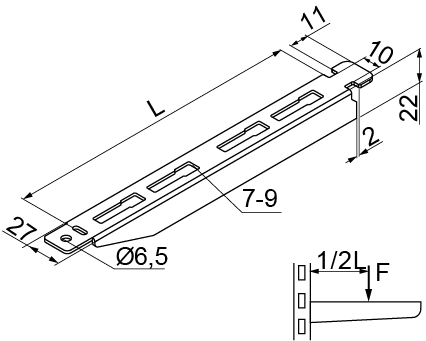

Symbol Catalogue number Length L (mm) Maximum load Fmax(kN) Weight 1 pc. (kg) Sheet thickness (mm) Quantity (pcs.)
WS50
Cable Management Solutions – BAKS
710105
Cable Management Solutions – BAKS
60 mm
Cable Management Solutions – BAKS
0.65
Cable Management Solutions – BAKS
0.04
Cable Management Solutions – BAKS
1.50
Cable Management Solutions – BAKS
100 		Add
WS100
Cable Management Solutions – BAKS
710110
Cable Management Solutions – BAKS
110 mm
Cable Management Solutions – BAKS
0.60
Cable Management Solutions – BAKS
0.07
Cable Management Solutions – BAKS
1.50
Cable Management Solutions – BAKS
50 		Add
WS150
Cable Management Solutions – BAKS
710115
Cable Management Solutions – BAKS
160 mm
Cable Management Solutions – BAKS
0.75
Cable Management Solutions – BAKS
0.13
Cable Management Solutions – BAKS
2
Cable Management Solutions – BAKS
50 		Add
WS200
Cable Management Solutions – BAKS
710120
Cable Management Solutions – BAKS
210 mm
Cable Management Solutions – BAKS
0.60
Cable Management Solutions – BAKS
0.17
Cable Management Solutions – BAKS
2
Cable Management Solutions – BAKS
50 		Add
WS300
Cable Management Solutions – BAKS
710130
Cable Management Solutions – BAKS
310 mm
Cable Management Solutions – BAKS
0.45
Cable Management Solutions – BAKS
0.28
Cable Management Solutions – BAKS
2
Cable Management Solutions – BAKS
50 		Add
WS400
Cable Management Solutions – BAKS
710140
Cable Management Solutions – BAKS
410 mm
Cable Management Solutions – BAKS
0.35
Cable Management Solutions – BAKS
0.35
Cable Management Solutions – BAKS
2
Cable Management Solutions – BAKS
30 		Add
WS500
Cable Management Solutions – BAKS
710150
Cable Management Solutions – BAKS
510 mm
Cable Management Solutions – BAKS
0.30
Cable Management Solutions – BAKS
0.45
Cable Management Solutions – BAKS
2
Cable Management Solutions – BAKS
30 		Add
