WWSN...MC Bracket with Magnelis coating

0.0 Cable Management Solutions – BAKS
Information

Mounting trays, trays mesh, cable ladders, pipes and other elements.

Material

MC - steel in Mangelis® coating

Additional information

– the notch on the side of the wall bracket allows screwless mounting trays, mesh trays and cable ladders using the new ZAPU universal clip...
– mounting to wall/structure with one bolt
– high strength parameters
– thanks to the increased width, it is possible to mount to the open side of the channel (stepless adjustment of the position is possible)

Product versions
Cable Management Solutions – BAKS Cable Management Solutions – BAKS

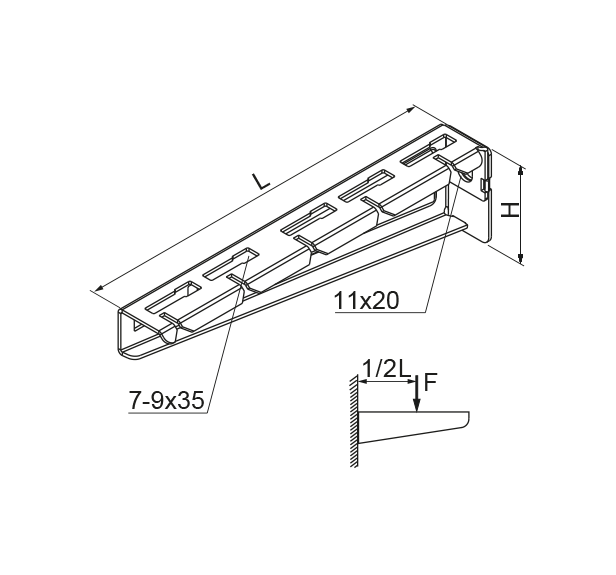

Symbol Catalogue number Length L (mm) Height H (mm) Maximum load Fmax(kN) Weight 1 pc. (kg) Sheet thickness (mm) Quantity (pcs.)
WWSN50MC
Cable Management Solutions – BAKS
7155055
Cable Management Solutions – BAKS
95 mm
Cable Management Solutions – BAKS
47
Cable Management Solutions – BAKS
0.75
Cable Management Solutions – BAKS
0.10
Cable Management Solutions – BAKS
1.20
Cable Management Solutions – BAKS
50
Add
WWSN100MC
Cable Management Solutions – BAKS
7155105
Cable Management Solutions – BAKS
145 mm
Cable Management Solutions – BAKS
54
Cable Management Solutions – BAKS
1.50
Cable Management Solutions – BAKS
0.19
Cable Management Solutions – BAKS
1.50
Cable Management Solutions – BAKS
50
Add
WWSN150MC
Cable Management Solutions – BAKS
7155155
Cable Management Solutions – BAKS
195 mm
Cable Management Solutions – BAKS
60
Cable Management Solutions – BAKS
1.70
Cable Management Solutions – BAKS
0.28
Cable Management Solutions – BAKS
1.50
Cable Management Solutions – BAKS
50
Add
WWSN200MC
Cable Management Solutions – BAKS
7155205
Cable Management Solutions – BAKS
245 mm
Cable Management Solutions – BAKS
65
Cable Management Solutions – BAKS
1.95
Cable Management Solutions – BAKS
0.33
Cable Management Solutions – BAKS
2
Cable Management Solutions – BAKS
30
Add
WWSN300MC
Cable Management Solutions – BAKS
7155305
Cable Management Solutions – BAKS
345 mm
Cable Management Solutions – BAKS
80
Cable Management Solutions – BAKS
2.25
Cable Management Solutions – BAKS
0.52
Cable Management Solutions – BAKS
2
Cable Management Solutions – BAKS
30
Add
WWSN400MC
Cable Management Solutions – BAKS
7155405
Cable Management Solutions – BAKS
450 mm
Cable Management Solutions – BAKS
90
Cable Management Solutions – BAKS
2.85
Cable Management Solutions – BAKS
0.89
Cable Management Solutions – BAKS
2.50
Cable Management Solutions – BAKS
20
Add
WWSN500MC
Cable Management Solutions – BAKS
7155505
Cable Management Solutions – BAKS
550 mm
Cable Management Solutions – BAKS
100
Cable Management Solutions – BAKS
3.15
Cable Management Solutions – BAKS
1.14
Cable Management Solutions – BAKS
2.50
Cable Management Solutions – BAKS
20
Add
WWSN600MC
Cable Management Solutions – BAKS
7155605
Cable Management Solutions – BAKS
650 mm
Cable Management Solutions – BAKS
110
Cable Management Solutions – BAKS
3.40
Cable Management Solutions – BAKS
1.68
Cable Management Solutions – BAKS
3
Cable Management Solutions – BAKS
20
Add
